Land Rover Defender: Distribution Motor - Demist
Land Rover Defender 2020-2026 Service Manual / Electrical / Climate Control System / Climate Control / Distribution Motor - Demist
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
The following step(s) applies to: All vehicles
1. Disconnect the startup battery ground cable.
The following step(s) applies to: Left hand drive vehicles
2. Remove the instrument panel lower trim.

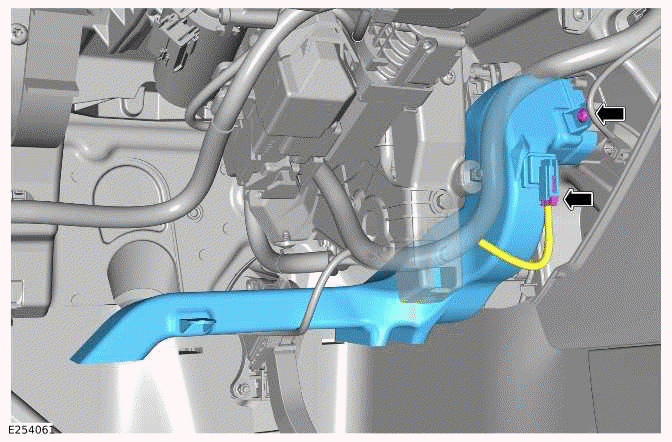

3.
.png)
- Disconnect the electrical connector from the air duct temperature sensor.
- Remove the screw.
- Remove the front left footwell air duct.

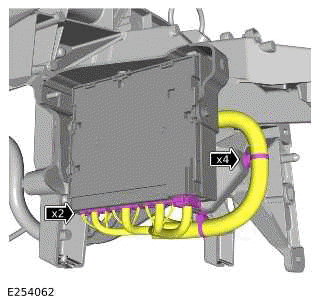

4.
.png)
- Disconnect the 4 electrical connectors from the Heating, ventilation, and air conditioning (HVAC) control module.
- Release the 2 wiring harness clips.

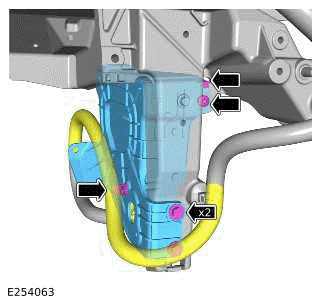

5.
.png)
- Release the wiring harness clip.
- Remove the 3 bolts.
- Remove the HVAC bracket.
The following step(s) applies to: Right hand drive vehicles
6. Remove the glovebox.

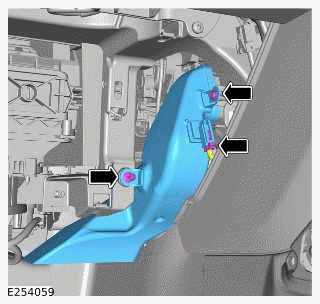

7.
.png)
- Disconnect the electrical connector from the air duct temperature sensor.
- Remove the clip.
- Remove the screw.
- Remove the front left footwell air duct.
The following step(s) applies to: All vehicles

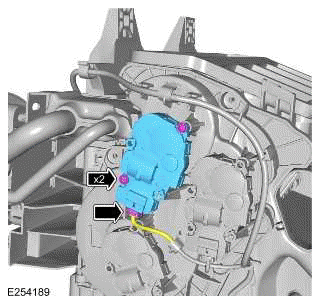

8.
.png)
- Disconnect the electrical connector from the demist distribution motor.
- Remove the 2 screws.
- Remove the demist distribution motor.
INSTALLATION
The following step(s) applies to: All vehicles
1.
- Install the demist distribution motor.
- Install and tighten the 2 screws.
Torque: 1.2Nm
- Connect the electrical connector to the demist distribution motor.
The following step(s) applies to: Left hand drive vehicles
2.
- Install the HVAC control module bracket.
- Install and tighten the 3 bolts.
Torque: 5Nm
- Secure the 3 wiring harness clips.
- Connect the 4 electrical connectors to the HVAC.
3.
- Install the front left footwell air duct.
- Install and tighten the screw.
Torque: 1.2Nm
- Connect the electrical connector to the air duct temperature sensor.
4. Install the instrument panel lower trim.
The following step(s) applies to: Right hand drive vehicles
5.
- Install the front left footwell air duct.
- Install and tighten the screw.
Torque: 1.2Nm
- Install the clip.
- Connect the electrical connector to the air duct temperature sensor.
6. Install the glovebox.
The following step(s) applies to: All vehicles
7. Connect the startup battery ground cable.
