Land Rover Defender: Auxiliary Climate Control Assembly
REMOVAL AND INSTALLATION
PART(S)
.png)
REMOVAL
CAUTION:
Before disconnecting any components, make sure the area is clean and free from
foreign material. When
disconnected all components must be sealed.
NOTES:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Disconnect the startup battery ground cable.
2. Evacuate the Air Conditioning (A/C) system.
3. Remove the rear left wheel arch liner.
4.
.png)

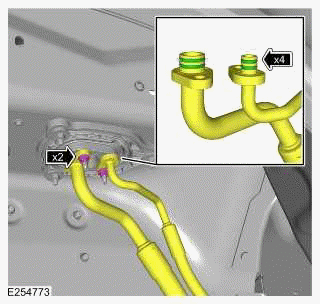

- Remove the 2 nuts.
- Release the 2 A/C pipes.
- Remove and discard the 4 O-ring seals.
5.
.png)

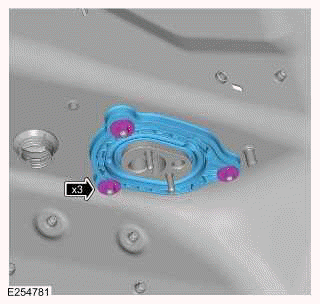

- Remove the 3 nuts.
- Remove the bracket.
6.
- Remove the left loadspace trim panel.
7.
.png)

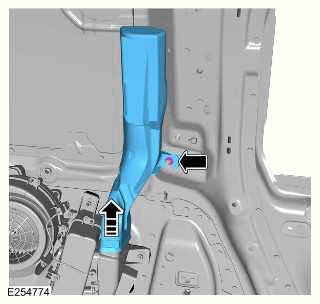

- Remove the nut.
- Remove the upper air duct.
8.
.png)

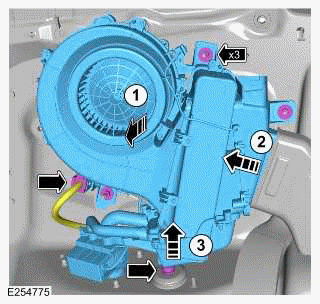

- Disconnect the electrical connector from the auxiliary climate control
assembly.
- Remove the 3 nuts.
- Remove the auxiliary climate control assembly as illustrated.
INSTALLATION
1.
- Install the auxiliary climate control assembly.
- Install and tighten the 3 nuts.
Torque: 5Nm
- Connect the electrical connector to the auxiliary climate control
assembly.
2.
- Install the upper air duct.
- Install and tighten the nut.
Torque: 5Nm
3. Install the left loadspace trim panel.
4.
- Install the bracket.
- Install and tighten the 3 nuts.
Torque: 5Nm
5.
NOTE:
Lubricate the O-ring seals with clean refrigerant oil.
6. Install the rear left wheel arch liner.
7. Connect the startup battery ground cable.
8. Recharge the A/C system to the correct specification.
