Land Rover Defender: Audio Amplifier Module
REMOVAL AND INSTALLATION
GENERAL EQUIPMENT
.png)
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Disconnect the startup battery ground cable.
2. Remove the left loadspace trim panel.

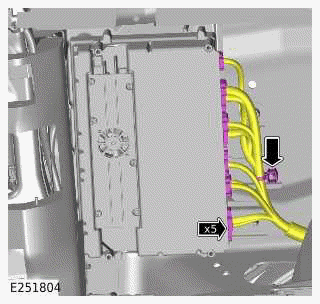

3.
.png)
- Release the clip.
- Disconnect the 5 electrical connectors.

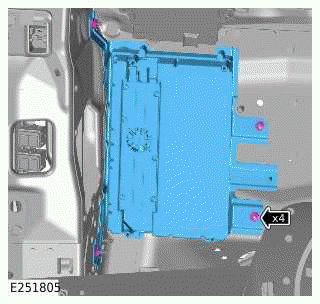

4.
.png)
- Remove the 4 nuts.
- Remove the Audio Amplifier Module (AAM) bracket assembly.

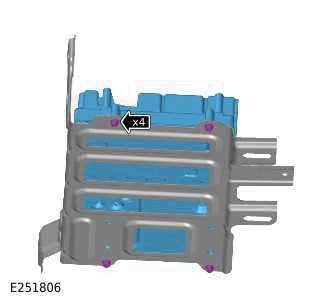

5.
NOTE:
Do not complete this step if the component is removed for access only.
.png)
- Remove the 4 bolts.
- Remove the AAM from the bracket.
INSTALLATION
1.
NOTE:
Only complete this step if previously removed.
- Install the Audio Amplifier Module (AAM) to the bracket.
- Install and tighten the 4 bolts.
Torque: 6Nm
2.
- Install the AAM bracket assembly.
- Install and tighten the 4 nuts.
Torque: 10Nm
3.
- Install the AAM wiring harness clip.
- Connect the 5 electrical connectors to the AAM.
4. Install the left loadspace trim panel.
5. Connect the startup battery ground cable.
6.
NOTES:
- This step is only required if a new component is installed.
- SRO to be claimed separately.
