Land Rover Defender: Second Row Seat Backrest Heater Element
Land Rover Defender 2020-2026 Service Manual / Body and Paint / Seating / Second Row Seat Backrest Heater Element
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations for right side components, left side components are similar.
1. Disconnect the startup battery ground cable.
2. Remove the second row seat backrest cover.
3.
.png)

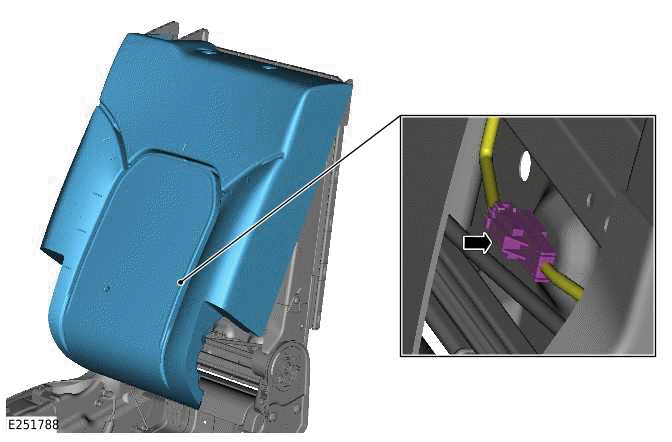

- Disconnect the electrical connector.
- Remove the second row seat backrest.
4.
.png)

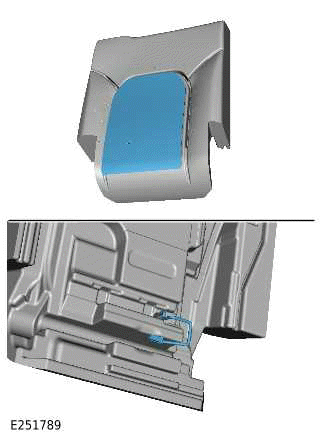

Remove the second row seat backrest heater element.
INSTALLATION
1. Install the second row seat backrest heater element.
2.
- Connect the electrical connector to second row seat.
- Install the second row seat backrest.
3. Install the second row seat backrest cover.
4. Connect the startup battery ground cable.
