Land Rover Defender: Second Row Right Seat Cushion Cover
REMOVAL AND INSTALLATION
GENERAL EQUIPMENT
.png)

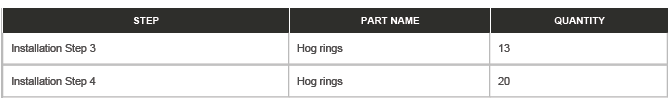

PART(S)
.png)
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1.
.png)

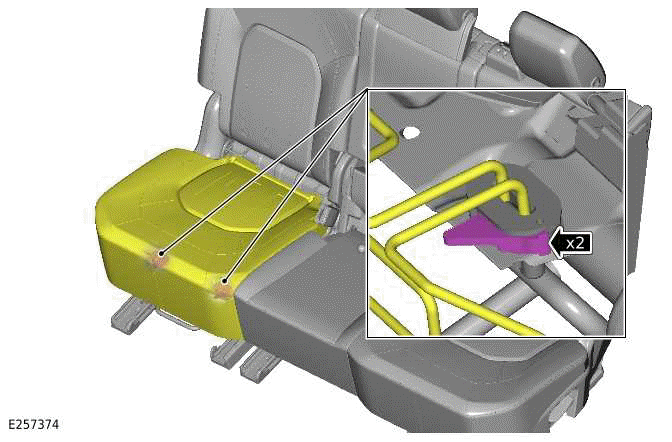

Release the 2 second row seat cushion retaining clips.
2.
.png)

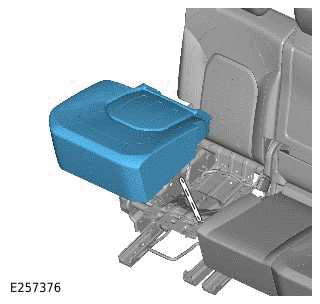

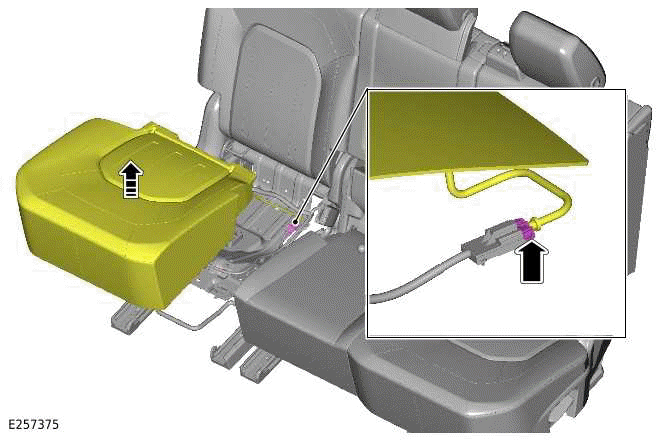

- Reposition the cushion to gain access to the electrcial connector.
- Disconnect the seat cushion heater element electrical connector.
3.
.png)
Remove the second row seat cushion.
4.
.png)

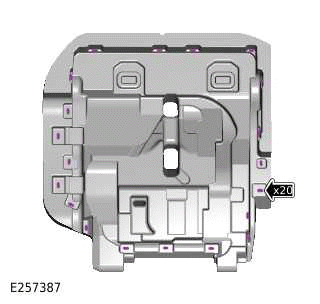

Use a suitable tool to remove and discard the 20 hog rings.
5.
.png)
Use a suitable tool to remove and discard the 13 hog rings.
6.
.png)

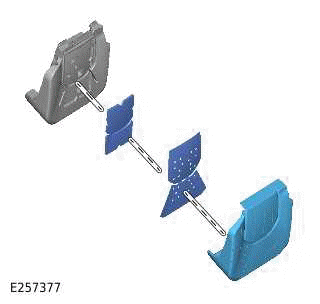

Remove the second row right seat cushion cover.
INSTALLATION
1.
NOTE:

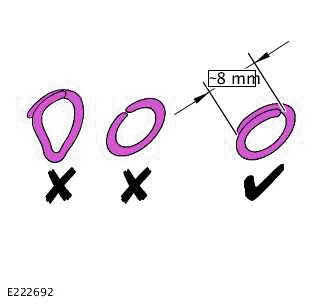

- Use hog ring pliers to close the hog rings. Do not use any other
tool. The hog rings must be
closed to overlap as illustrated.
- Make sure that new hog rings are installed.
.png)
General Equipment: Hog ring pliers
2. Install the second row seat cushion cover.
3.
.png)

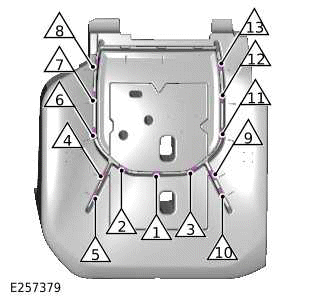

Install the 13 new hog rings in the sequence illustrated.
Renew Part: Hog rings Quantity: 13.
4.
.png)

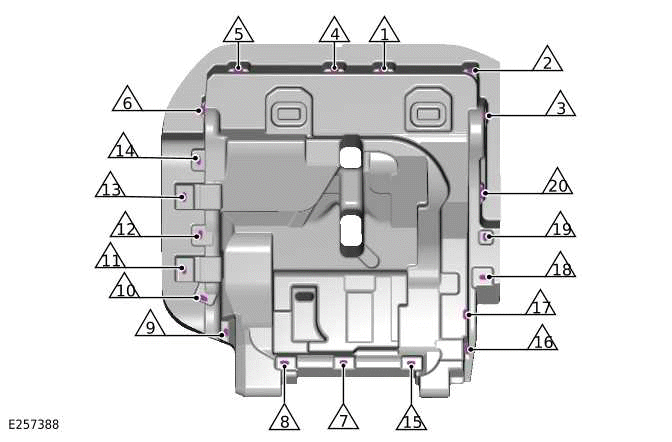

Install the 20 new hog rings in the sequence illustrated.
Renew Part: Hog rings Quantity: 20.
5. Install the second row seat cushion.
6.
- Connect the seat cushion heater element electrical connector.
- Position the seat cushion in the correct location.
7. Install the 2 second row seat cushion retaining clips.
