Land Rover Defender: Component Location, Overview
COMPONENT LOCATION
COMPONENT LOCATION - 1 OF 6 - ALL MARKET EXCEPT NORTH AMERICAN
SPECIFICATION VEHICLES
NOTES:
- Right Hand Drive (RHD) vehicle is shown, Left Hand Drive (LHD)
vehicle is similar.
- Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
- Side air curtain - Right
- Side air curtain - Left
- Restraints Control Module (RCM)
- Telematics Control Module (TCU)
- Passenger Rear Door Module (PRDM)
- Passenger Door Control Module (PDM)
- Body Control Module (BCM)/ Gateway Control Module (GWM)
- Powertrain Control Module (PCM)
- Instrument Panel Cluster (IPC)
- Driver Door Control Module (DDM)
- Steering Wheel Control Module (SWM)
- Driver Rear Door Module (DRDM)

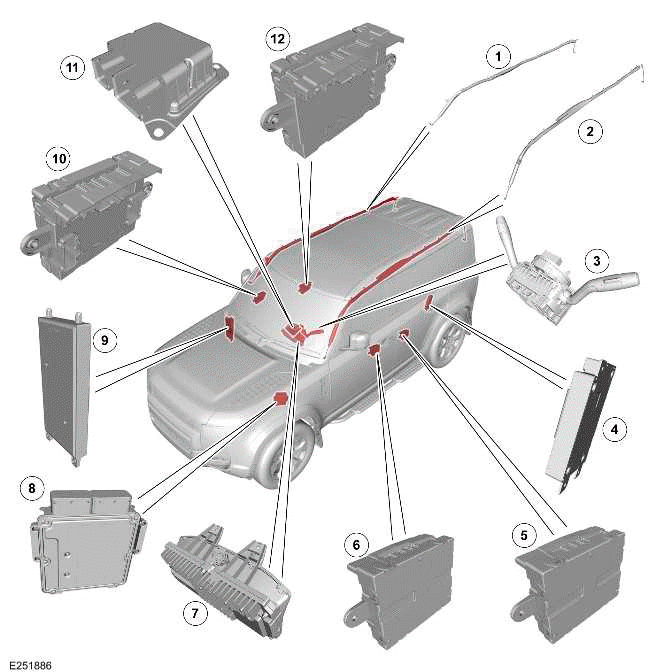

COMPONENT LOCATION - 2 OF 6 - NORTH AMERICAN SPECIFICATION VEHICLES
NOTE:
Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
- Side air curtain - Right
- Side air curtain - Left
- SWM
- TCU
- DRDM
- DDM
- IPC
- PCM
- BCM/ GWM
- PDM
- RCM
- PRDM

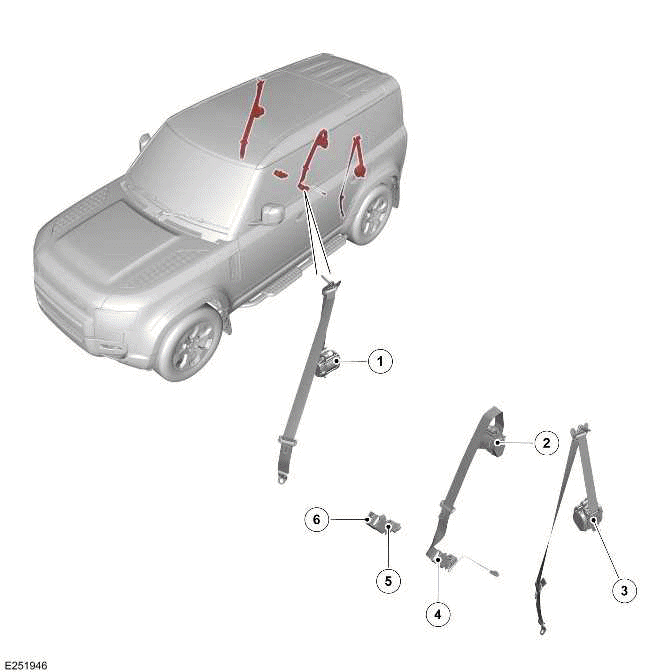

COMPONENT LOCATION - 3 OF 6 - THE SECOND ROW MOVEABLE SEAT WITH 5 DOORS
- Second row seatbelt retractor pretensioner - Right
- Second row seatbelt retractor - Center
- Second row seatbelt retractor pretensioner - Left
- Second row seatbelt buckle - Left
- Second row seatbelt buckle - Center
- Second row seatbelt buckle - Right

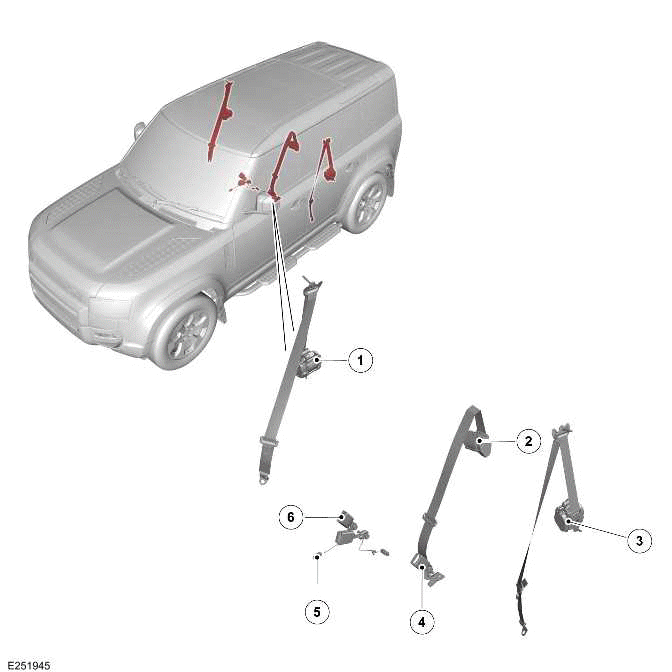

COMPONENT LOCATION - 4 OF 6 - SEATBELT RETRACTOR PRETENSIONER OF THE
SECOND ROW FIXED SEAT WITH
5 DOORS - 6 SEAT
- Second row seatbelt retractor pretensioner - Right
- Second row seatbelt retractor - Center
- Second row seatbelt retractor pretensioner - Left
- Second row seatbelt buckle - Left
- Second row seatbelt buckle - Center
- Second row seatbelt buckle - Right

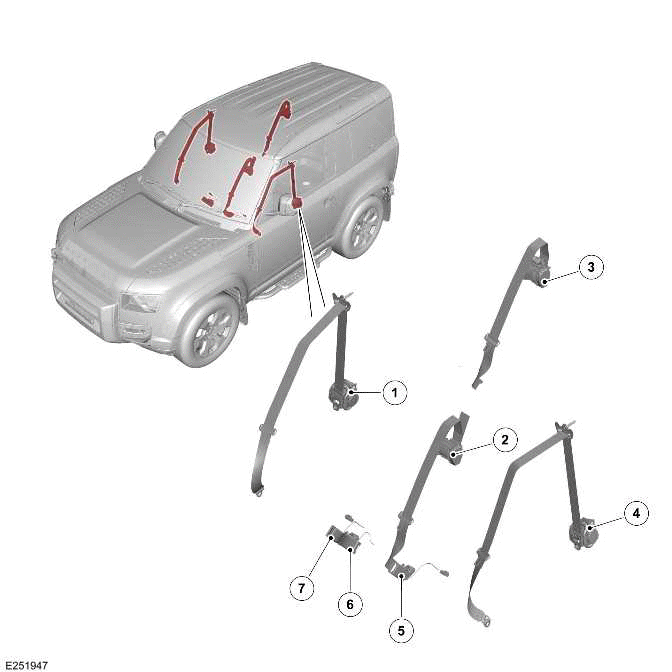

COMPONENT LOCATION - 5 OF 6 - SEATBELT RETRACTOR PRETENSIONER OF THE
SECOND ROW FIXED SEAT WITH
3 DOORS
- Second row seatbelt retractor pretensioner - Right
- Second row seatbelt retractor without pretensioner - Center
- Second row seatbelt retractor pretensioner- Center (6 seat)
- Second row seatbelt retractor pretensioner - Left
- Second row seatbelt buckle - Left
- Second row seatbelt buckle - Center
- Second row seatbelt buckle - Right
COMPONENT LOCATION - 6 OF 6 - THIRD ROW SEATBELT RETRACTOR PRETENSIONER
- Third row seatbelt retractor pretensioner - Right
- Third row seatbelt retractor pretensioner - Left
- Third row seatbelt buckle - Left
- Third row seatbelt buckle - Right
OVERVIEW
The Supplementary Restraint System (SRS) provides additional protection for
vehicle occupants in certain impact
conditions by selective activation of the following airbags:
- Driver and passenger airbags
- Side airbags
- Side air curtains
- Seatbelt pretensioners.
Operation of the system is controlled by the RCM.
