Land Rover Defender: Front Row Seat Driver Cushion Heater Element

Land Rover Defender 2020-2024 Service Manual / Body and Paint / Seating / Front Row Seat Driver Cushion Heater Element

REMOVAL AND INSTALLATION

REMOVAL

NOTE:

1. Disconnect the startup battery ground cable.

2. Remove the front row seat cushion cover.

3.

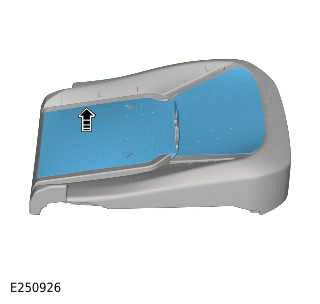

Front Row Seat Driver Cushion Heater Element

Remove the heater element.

INSTALLATION

1. Install the heater element.

2. Install the front row seat cushion cover.

3. Connect the startup battery ground cable.
