REMOVAL AND INSTALLATION
REMOVAL
CAUTION: Protect the surrounding paintwork to avoid damage.
NOTES:
- This procedure contains illustrations for left side components, right side components are similar.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
1. Disconnect the startup battery ground cable.
2. Remove the rear door window.
3. Remove the rear door trim panel.
4.
.png)

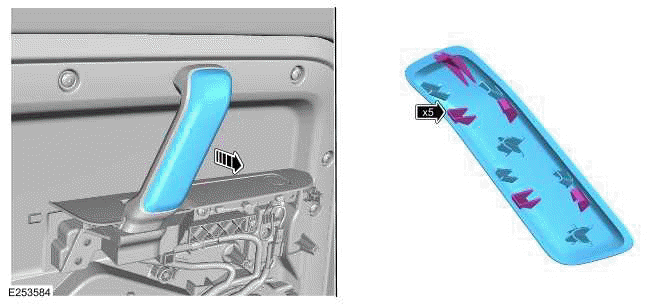

- Release the 5 clips.
- Remove the access cover.
5.
.png)

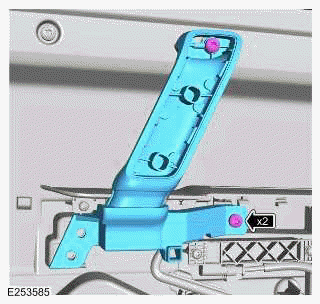

- Remove the 2 bolts.
- Remove the interior door handle.
6.
.png)

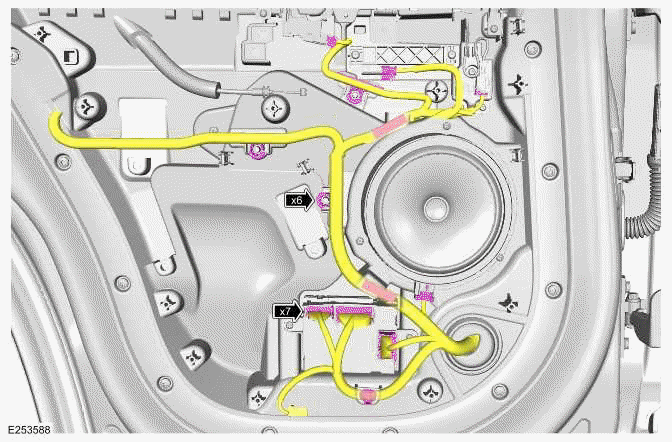

- Disconnect the 3 electrical connectors from the rear door control module.
- Disconnect the electrical connector from the bass speaker.
- Disconnect the electrical connector from the Clear Exit Detection System (CEDS) switch.
- Disconnect the electrical connector from the passive entry sensor.
- Disconnect the electrical connector from the rear door window switch.
- Release the 6 wiring harness clips.
7.
.png)

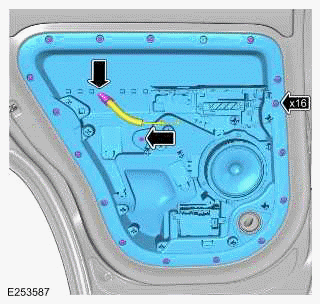

- Remove the screw.
- Remove the 16 bolts.
- Disconnect the door release cable.
- Remove the inner door panel.
8.
.png)

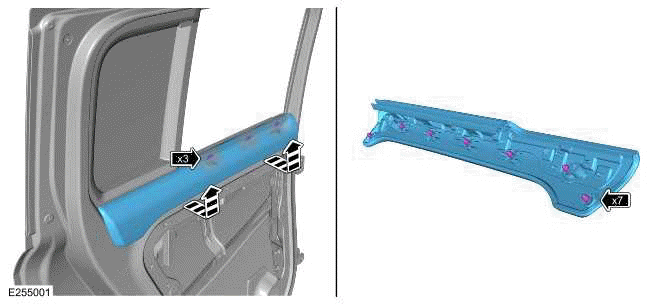

- Release the 10 clips.
- Remove the rear door upper trim panel as illustrated.
9.
.png)
- Release the 8 clips.
- Remove the fixed window trim.
10.
.png)

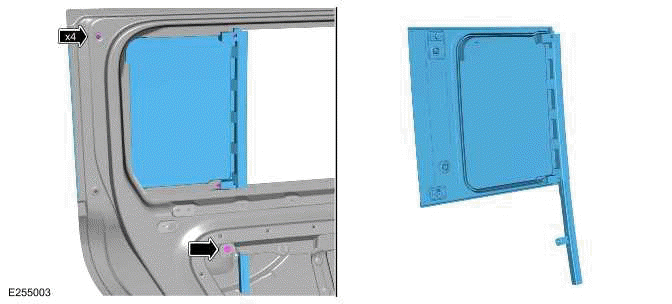

- Remove the bolt.
- Remove the 4 screws.
- Remove the rear door fixed window.
INSTALLATION

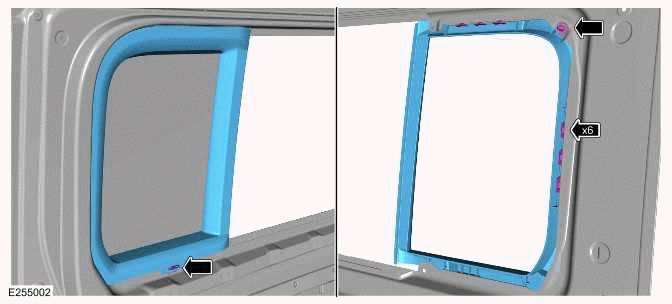

1.
.png)
- Install the rear door fixed window.
- Install and tighten the 4 screws.
Torque: 1.2Nm
- Install and tighten the bolt.
Torque: 3Nm
2. Install the fixed window trim.
3. Install the rear door upper trim panel.
4.
.png)
- Install the door release cable.
- Install the inner door panel.
- Install and tighten the screw.
Torque: 3.2Nm
- Install and tighten the 16 bolts.
Torque: 6Nm
5.
.png)
- Connect the 3 electrical connectors to the rear door control module.
- Connect the electrical connector to the bass speaker.
- Connect the electrical connector to the Clear Exit Detection System (CEDS) switch.
- Connect the electrical connector to the passive entry sensor.
- Connect the electrical connector to the rear door window switch.
- Install the 6 wiring harness clips.
6.
- Install the interior door handle.
- Install and tighten the 2 bolts.
Torque: 6Nm
7. Install the door handle access cover.
8. Install the rear door window.
9. Install the rear door trim panel.
10. Connect the startup battery ground cable.
