Land Rover Defender: Rear Park Assist Sensor
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- This procedure contains illustrations for left side components, right
side components are similar.
- The ignition must be switched off.
1. Raise and support the vehicle on a suitable 2-post lift.
2. With assistance, remove the rear bumper.
3.
.png)

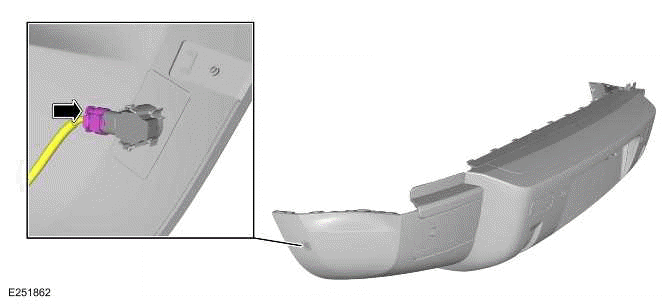

Disconnect the electrical connector from the rear park assist sensor.
4.
.png)

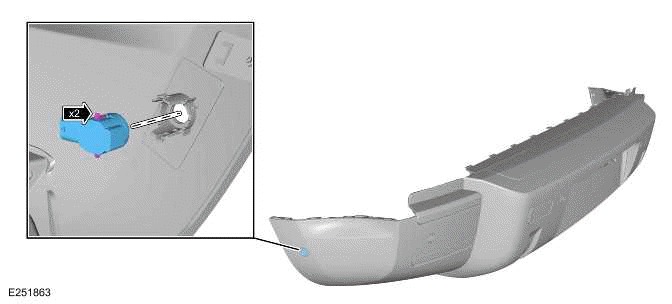

Release the 2 clips and remove the rear park assist sensor.
INSTALLATION
1.
CAUTIONS:

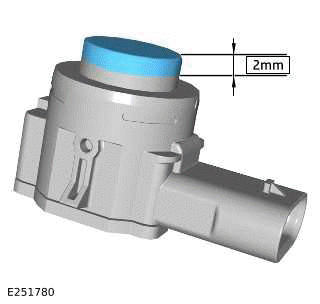

- If a new park assist sensor is installed, make sure that the membrane
and the cylindrical edge
of the membrane must be covered with a paint layer of at least 2 mm all the
way around as
illustrated.
- The whole paint film thickness on the membranes is up to a maximum of
120 micrometers
(including the electro-coated layer) to make sure a proper sensor function.
- This is also valid for the multiple layer paints.
.png)
Check the paint layer of the parking assist sensor.
2.
CAUTIONS:

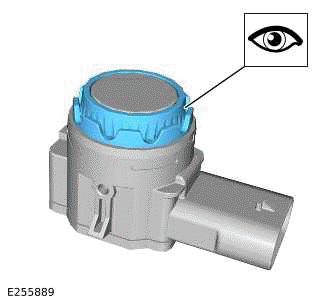

- Inspect the ring, replace if damaged.
- Make sure that the ring is correctly located to the sensor.
.png)
Before installing the rear park assist sensor, check the condition and the
position of the ring.
3.
NOTE: Make sure that the sensor is correctly located to the bracket.
Audible clicks will be heard to
confirm connection.
- Install the rear park assist sensor.
- Connect the electrical connector to the rear park assist sensor.
4. With assistance, install the rear bumper.
