REMOVAL AND INSTALLATION
GENERAL EQUIPMENT
.png)
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Remove the A-pillar lower trim panel.
2.
.png)

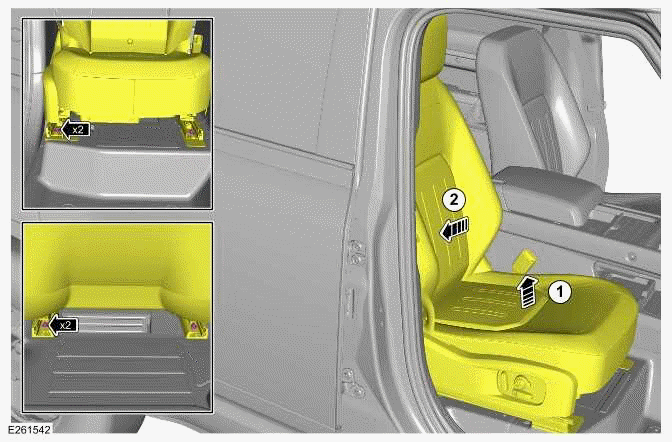

- Remove the 4 bolts.
- Position the front row seat as illustrated.
3. Disconnect the startup battery ground cable.
4.
.png)

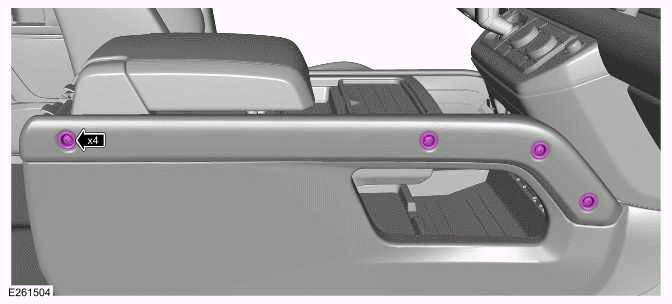

- Remove the 4 screws.
5.
.png)

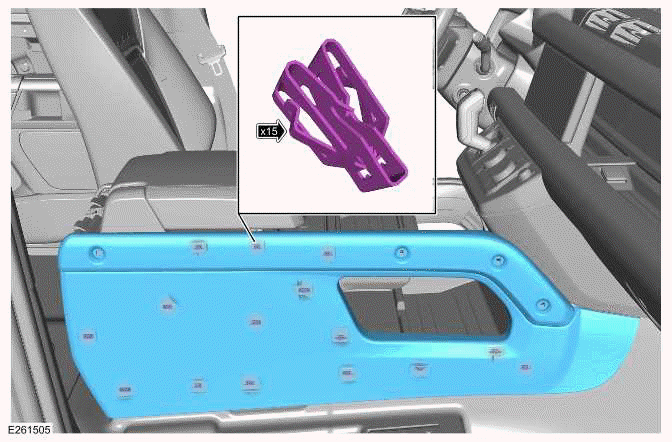

- Release the 15 clips.
- Remove the floor console side panel.
6.
.png)

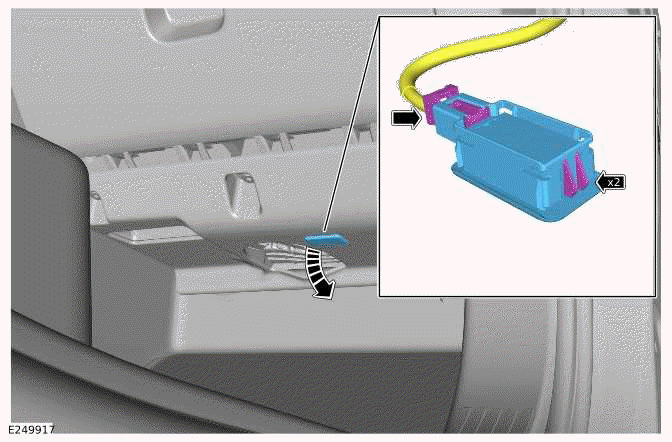

- Remove the footwell lamp.
- Disconnect the electrical connector.
7.
.png)

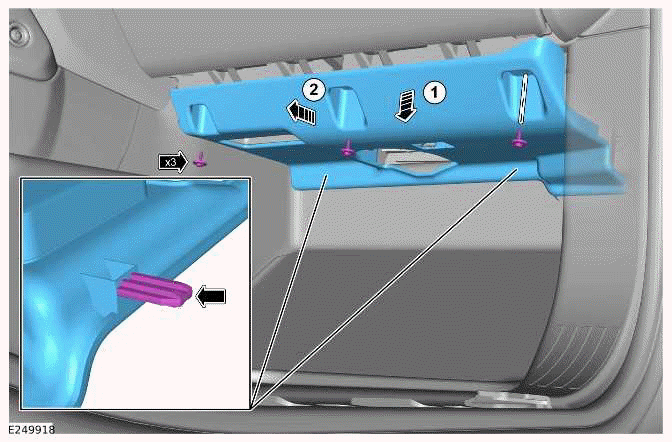

- Remove the 3 screws.
- Remove the passenger side footwell trim panel.
8.
.png)

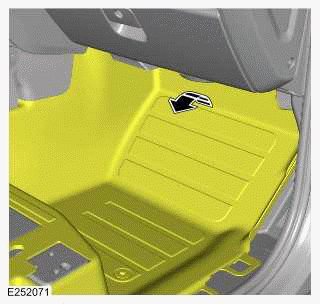

Carefully release the front floor carpet for access.
9.
.png)

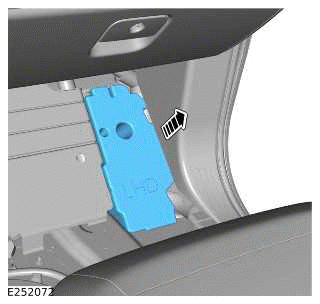

Remove the cover.
10.
.png)

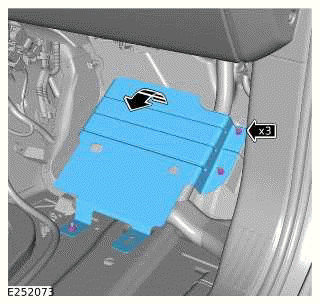

- Remove the 3 nuts.
- Remove the bracket.
11.
.png)

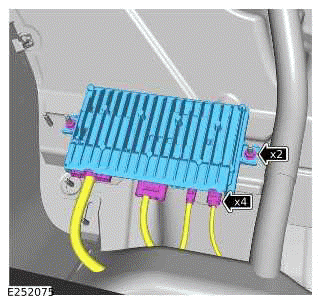

- Disconnect the 4 electrical connectors.
- Remove the 2 nuts.
- Remove the Near Field Sensing Module (NFSM).
INSTALLATION
1.
- Install the NFSM.
- Install and tighten the 2 nuts.
Torque: 10Nm
- Connect the 4 electrical connectors.
2.
- Install the bracket.
- Install and tighten the 3 nuts.
Torque: 10Nm
3. Install the cover.
4. Install the front floor carpet.
5.
- Install the passenger side footwell trim panel.
- Install and tighten the 3 screws.
Torque: 5Nm
- Connect the electrical connector.
- Install the footwell lamp.
6.
NOTE: Make sure that all the clips are correctly installed.
- Install the floor console side panel.
- Install and tighten the 4 screws.
Torque: 2.2Nm
7. Connect the startup battery ground cable.
8.
- Reposition the front row seat to the original position.
- Install and tighten the 4 bolts.
Torque: 48Nm
9. Install the A-pillar lower trim panel.
10.
NOTES:
- This step is only required if a new component is installed.
- SRO to be claimed separately.
- Use the Jaguar Land Rover (JLR) approved diagnostic equipment to
configure the new module.
General Equipment: Jaguar Land Rover approved diagnostic equipment
- Follow all on-screen instructions to complete this task.
