Land Rover Defender: Climate Control Assembly
Land Rover Defender 2020-2026 Service Manual / Electrical / Climate Control System / Climate Control / Climate Control Assembly
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains illustrations for left hand drive vehicles, right hand drive vehicles are similar.
1. Disconnect the startup battery ground cable.
2. Remove the instrument panel cross-car beam.
3.
.png)

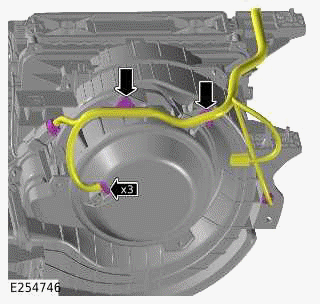

- Disconnect the 3 electrical connectors from the climate control assembly.
- Release the 2 wiring harness clips.
4.
.png)

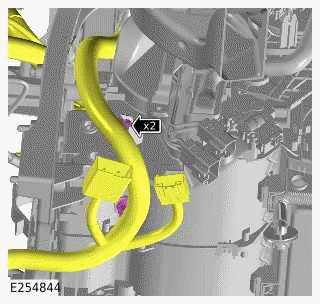

Release the 2 wiring harness clips from the climate control assembly.
5.
.png)

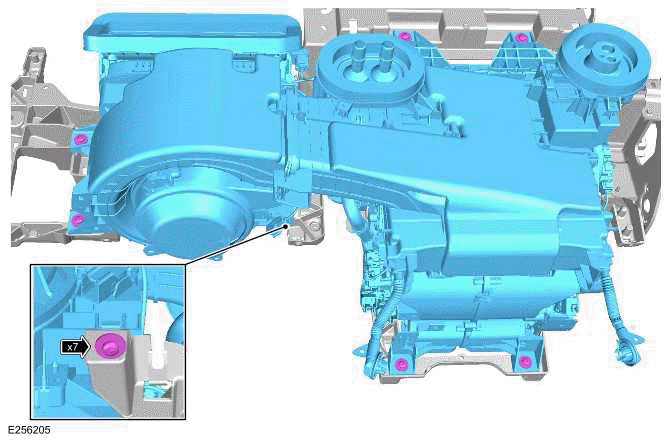

- Remove the 7 bolts.
- Remove the climate control assembly.
INSTALLATION
1.
.png)

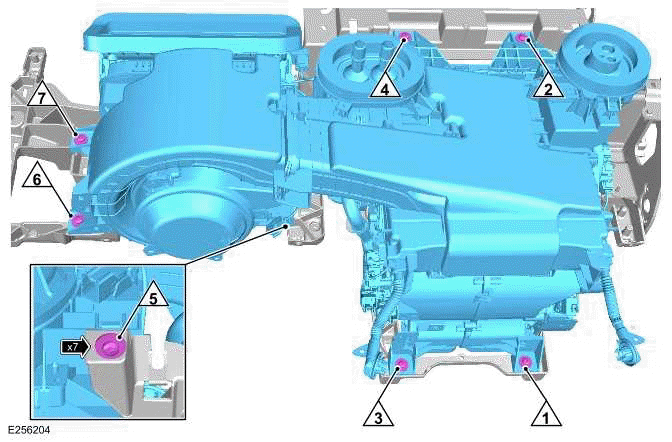

- Install the climate control assembly.
- Install and finger tighten the bolts.
- Tighten the 7 bolts evenly in the sequence shown.
Torque: 9Nm
2.
- Install the 4 wiring harness clips to the climate control module.
- Connect the 3 electrical connectors to the climate control assembly.
3. Install the instrument panel cross-car beam.
4. Connect the startup battery ground cable.
