Land Rover Defender: Interior Air Filter
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1.
.png)

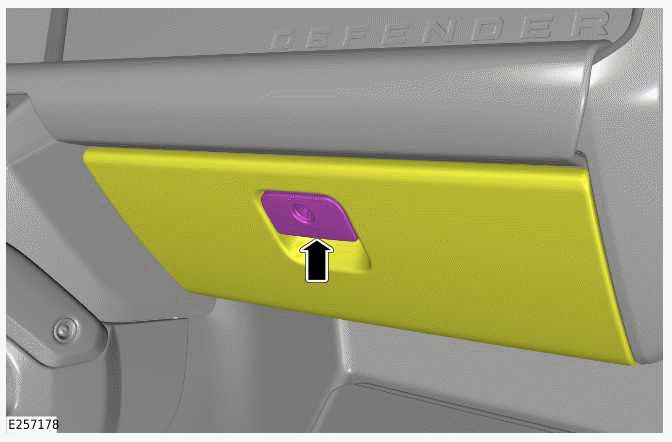

Open the glovebox.
2.
.png)

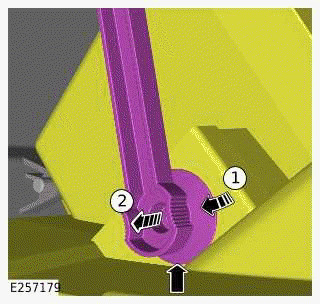

Release the glovebox damper arm from the glovebox.
3.
CAUTION: Extra care must be taken to avoid damage to the glovebox and surrounding components.
.png)

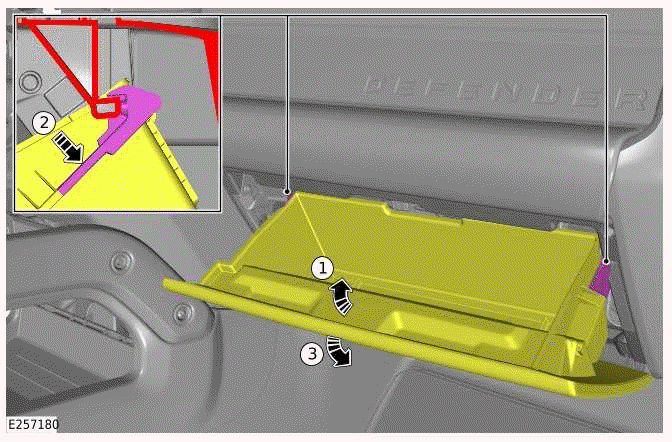

- Lift the glovebox slightly.
- Release the 2 clips.
- Lower the glovebox into the service position.
4.
.png)

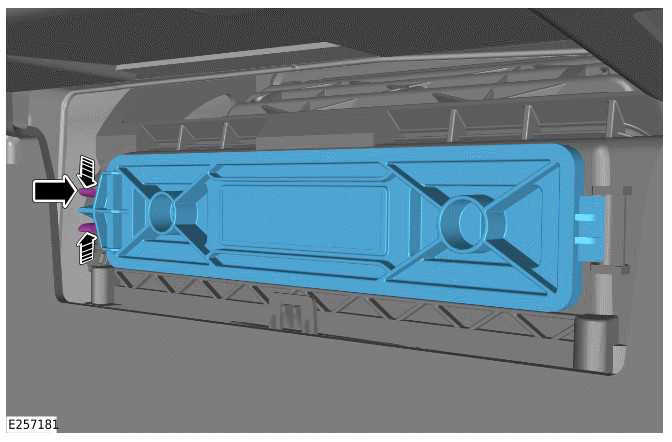

- Release the clip.
- Remove the interior air filter access cover.
5.
.png)

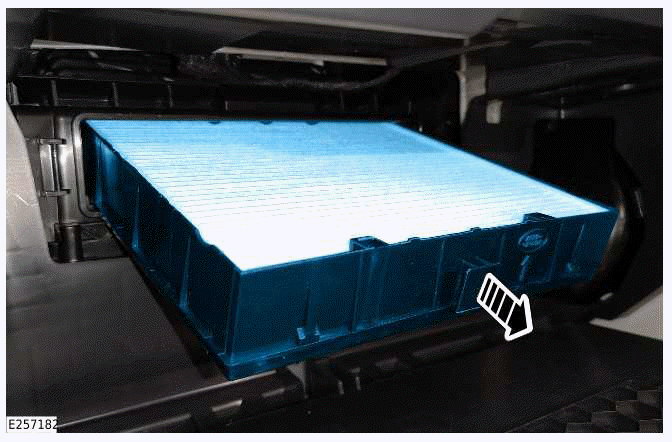

Remove the interior air filter housing.
6.
.png)

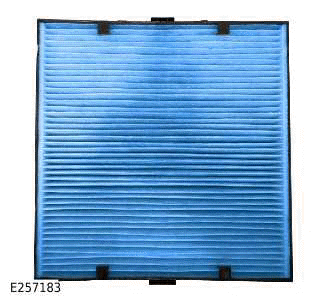

Remove the interior air filter element.
INSTALLATION
1.

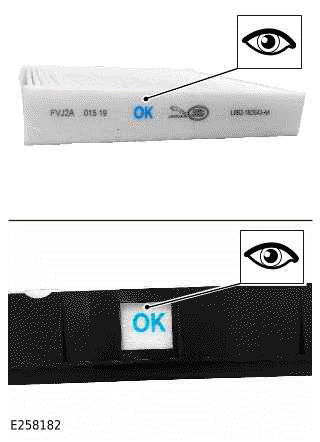

CAUTION: Make sure the interior air filter element is installed correctly as illustrated with no visible gaps between the interior air filter housing and interior air filter element.
.png)
Install the interior air filter element.
2.
.png)
Make sure the interior air filter element is installed correctly as shown in the illustration.
3.

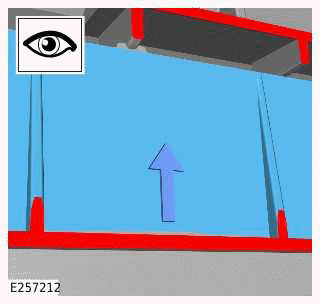

CAUTION: Make sure the arrow on the interior air filter housing is facing upwards.
.png)
Install the interior air filter housing.
4.
- Install the interior air filter access cover.
- Install the clip.
5.
CAUTION: Extra care must be taken to avoid damage to the glovebox and surrounding components.
- Press the 2 clips.
- Lift the glovebox slightly.
- Install the 2 clips to the rear of the glovebox.
6. Install the glovebox damper arm to the glovebox.
7. Close the glovebox.
