REMOVAL AND INSTALLATION

PART(S)

Rear Halfshaft

REMOVAL

WARNING: Be prepared to collect escaping oil.

NOTE:

1. Raise and support the vehicle on a suitable 2 post lift.

2. Remove the wheel knuckle.

3.

CAUTION: Take care not to damage the halfshaft seal.

Rear Halfshaft

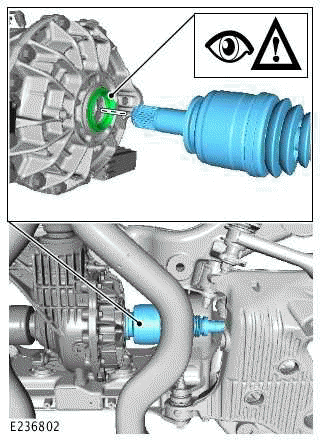

Remove the rear halfshaft.

4.

Rear Halfshaft

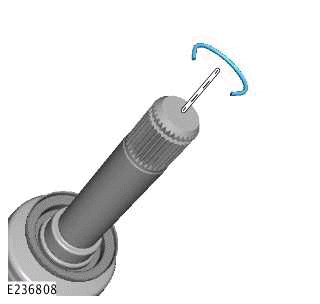

Remove and discard the circlip.

INSTALLATION

1. Renew the circlip.

2.

Rear Halfshaft

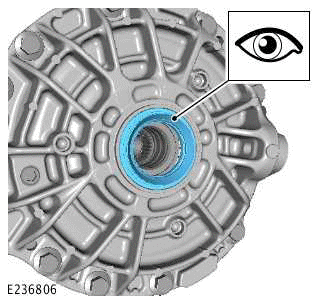

Clean and inspect the seal. Replace if damaged or worn.

3. Use a suitable seal protector during the installation of the halfshaft.

4.

CAUTION: Make sure that the rear halfshaft circlip is installed correctly by pulling the halfshaft gently to make sure it is engaged.

Install the rear halfshaft.

5. Install the wheel knuckle.

6. Check the differential oil level and top up if necessary
