Land Rover Defender: Rear Driveshaft
REMOVAL AND INSTALLATION
PART(S)
.png)
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1.
.png)

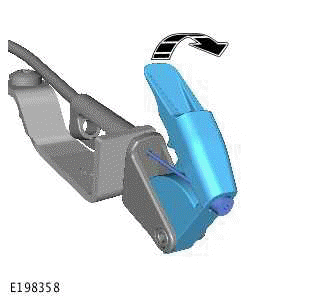

Release the Emergency Park Release (EPR).
2. Raise and support the vehicle on a suitable 2 post lift.
3. Remove the exhaust system.
4. Remove the right undershield.
5. Remove the left undershield.
6.
.png)

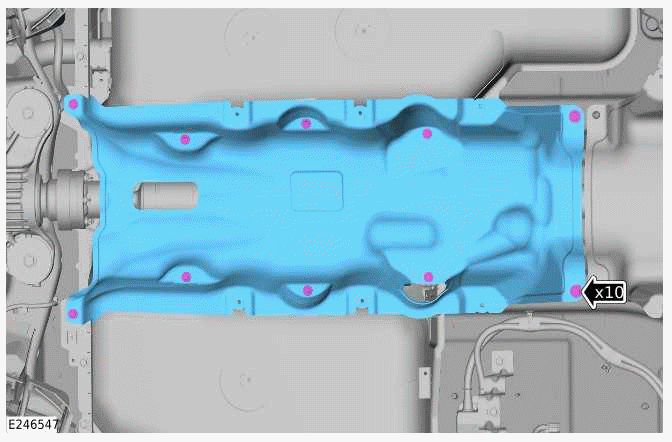

- Remove the 10 bolts.
- Remove the heatshield.
7.
.png)

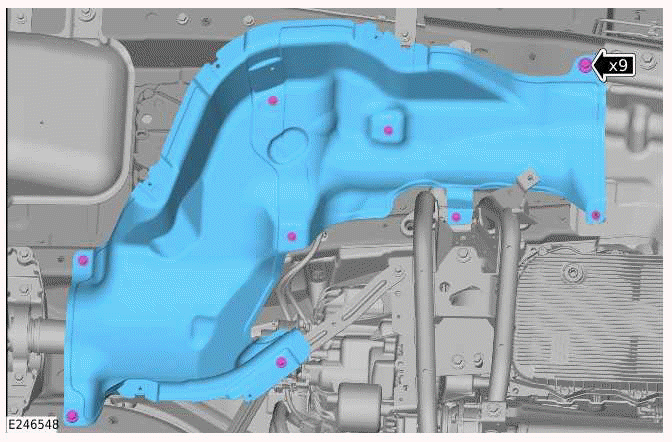

- Remove the 9 bolts.
- Remove the heatshield.
8.
CAUTION: To avoid damage to the joint, do not allow the driveshaft to hang.
.png)

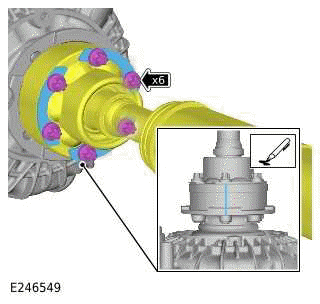

- Mark the position of the driveshaft in relation to the rear drive axle flange.
- Remove and discard the 6 bolts.
- Remove the 3 washers.
9. Disconnect the driveshaft from the rear differential.
10.
WARNING: This step requires the aid of another technician.
.png)

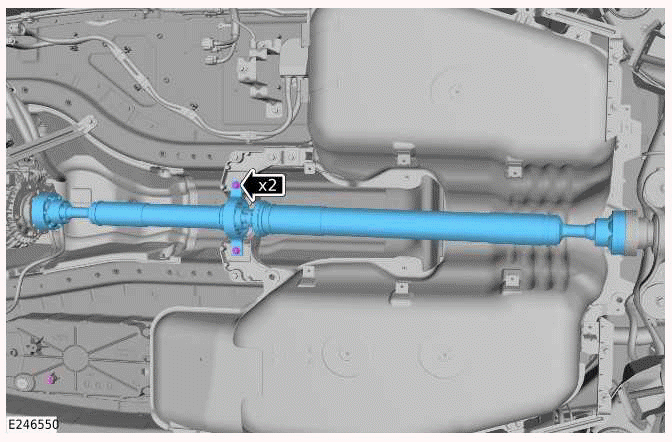

- Remove the 2 bolts.
- Remove the rear driveshaft.
INSTALLATION
1.
WARNING: This step requires the aid of another technician.
- Install the rear driveshaft.
- Install and tighten the 2 bolts.
Torque: 47.5Nm
2.
- Install the rear driveshaft to the alignment mark made on the removal step.
- Install the 3 spacers.
- Install and tighten the 6 new driveshaft to front output flange bolts.
Renew Part: Driveshaft to front output flange bolts Quantity: 6.
Torque: 73Nm
3.
- Install the rear driveshaft to the alignment mark made on the removal step.
- Install the 3 washers.
- Install and tighten the 6 new driveshaft to rear differential bolts.
Torque: 73Nm
4.
- Install the heatshield.
- Install and tighten the 9 bolts.
Torque: 10Nm
5.
- Install the heatshield.
- Install and tighten the 10 bolts.
Torque: 10Nm
6. Install the right side undershield.
7. Remove the left undershield.
8. Install the exhaust system.
9. Reset the Emergency Park Release (EPR) cable.
