Land Rover Defender: Floor Console - Vehicles Without: Stowage Compartment
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1.
.png)

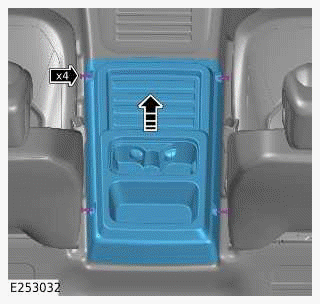

- Remove the 4 bolts.
- Remove the floor console center trim panel.
2.
NOTE:
Only complete the following step(s) if a new component is to be installed.
.png)

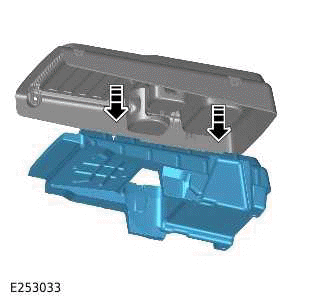

Remove the floor console insulator foam.
3.
.png)

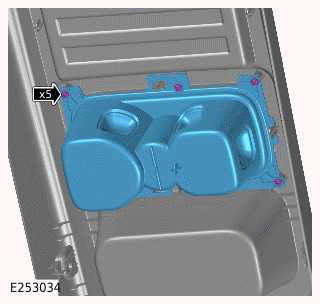

- Remove the 5 bolts.
- Remove the cup holder from the floor console center trim panel.
INSTALLATION
1.
NOTE:
Steps 1-2 are only required if the components were previously removed.
- Install the cup holder.
- Install and tighten the 5 bolts.
Torque: 1.5Nm
2. Install the floor console insulator foam.
3.
- Install the floor console center trim panel.
- Install and tighten the 4 bolts.
Torque: 1.7Nm
