Land Rover Defender: Loadspace Upper Trim Panel - 90
Land Rover Defender 2020-2025 Service Manual / Body and Paint / Interior Trim and Ornamentation / Loadspace Upper Trim Panel - 90
REMOVAL AND INSTALLATION
REMOVAL
CAUTION: Make sure that excessive force is not used. Failure to follow this instruction may result in damage to the vehicle.
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
1.
.png)

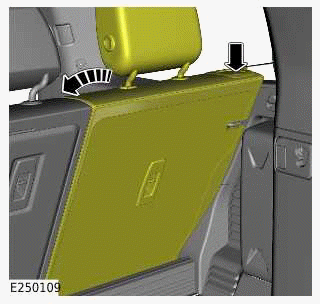

Move the rear row seat to the folded position.
2.
.png)

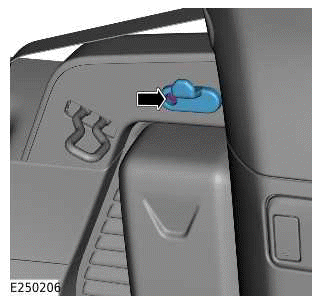

- Remove the bolt.
- Remove the coat hanger.
3.
.png)

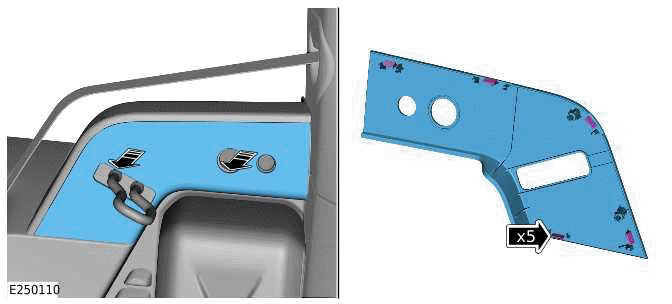

- Release the 5 clips.
- Remove the loadspace upper trim panel cover.
4.
.png)

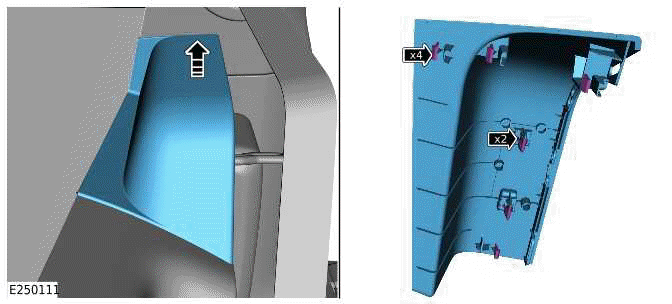

- Release the 6 clips.
- Remove the loadspace upper trim panel.
INSTALLATION
1.
NOTE: Make sure that the trim is correctly installed to the clips.
- Install the loadspace upper trim panel.
- Install the 6 clips.
2.
- Install the loadspace upper trim panel cover.
- Install the 5 clips.
3.
- Install the coat hanger.
- Install and tighten the bolt.
Torque: 1.7Nm
4. Move the rear row seat to the original position.
