Land Rover Defender: Front Fender Moulding
Land Rover Defender 2020-2026 Service Manual / Body and Paint / Exterior Trim and Ornamentation / Front Fender Moulding
REMOVAL AND INSTALLATION
REMOVAL
CAUTION: Make sure to protect the paintwork.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains illustrations for left side components, right side components are similar.
1.
.png)

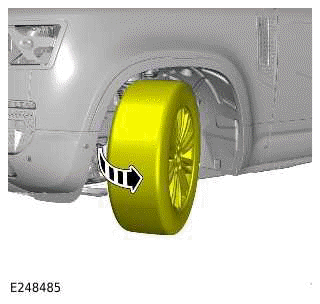

Reposition the front wheel to get access to the front fender moulding.
2.
.png)

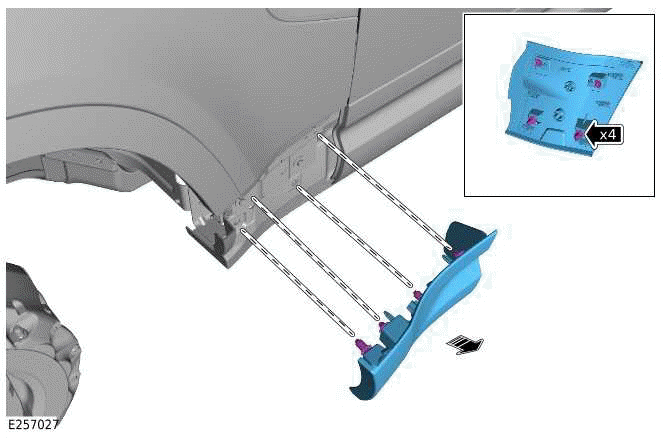

- Release the 4 clips.
- Remove the front fender moulding.
INSTALLATION
1.
CAUTION: Make sure to protect the paintwork.
NOTE: Make sure that the retaining clips are correctly installed.
.png)

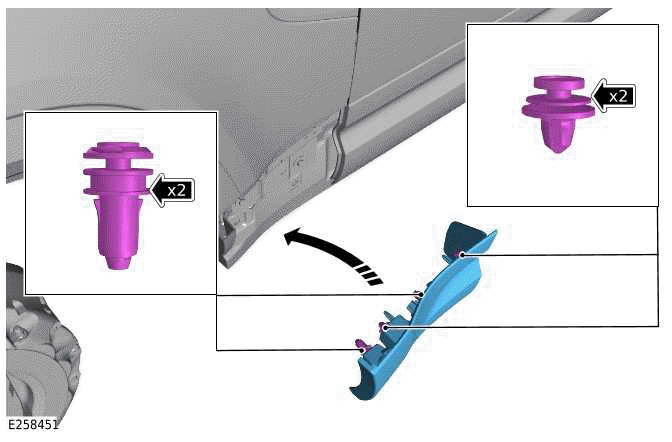

- Install the front fender moulding.
- Install the 4 clips.
2. Make sure the fender moulding is correctly aligned to the surrounding bodywork.
3. Reposition the front wheel.
