SPECIFICATIONS

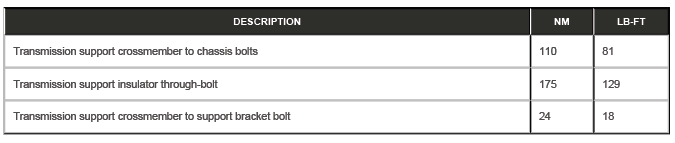

Torque Specifications
.png)
TRANSMISSION CROSS MEMBER - INGENIUM I4 2.0 L PETROL
REMOVAL AND INSTALLATION
GENERAL EQUIPMENT
.png)
REMOVAL
WARNING: Observe due care when working near a hot exhaust system.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2 post lift.
2.
.png)

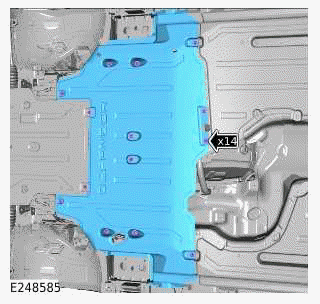

- Remove the 14 bolts.
- Remove the transmission undershield.
3.
.png)

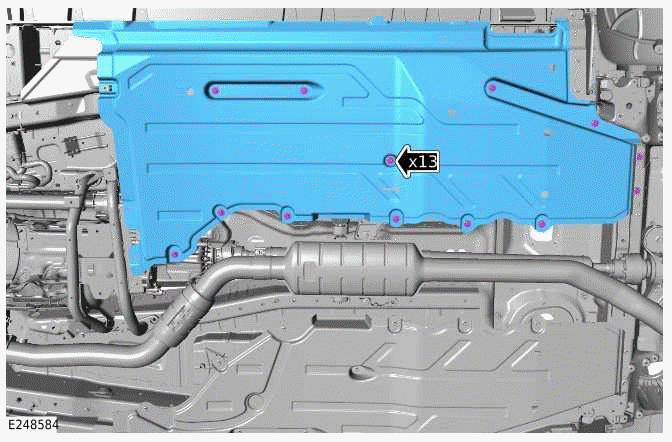

- Remove the 13 bolts.
- Remove the left side undershield.
4.
.png)

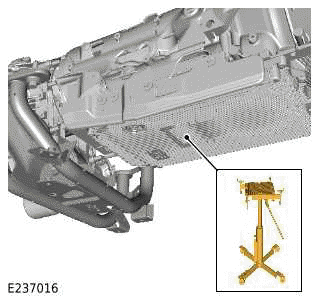

- Position the transmission jack below the transmission.
- Adjust the transmission jack to support the weight of the transmission.
General Equipment: Transmission jack
5.
.png)

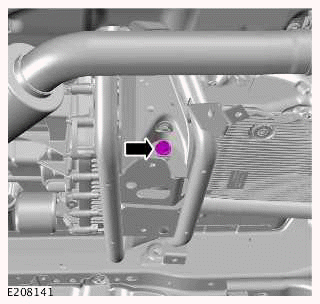

Remove the transmission cross member mounting bolt.
6.
.png)

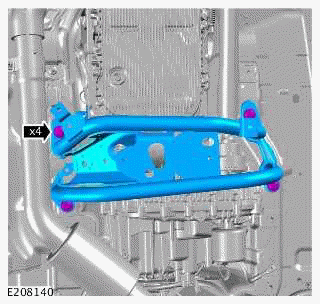

- Remove the 4 bolts.
- Remove the transmission cross member.
INSTALLATION
1.
- Install the transmission cross member.
- Install and tighten the 4 bolts.
Torque: 110Nm
2.
- Install and tighten the transmission cross member mounting bolt.
Torque: 175Nm
3.
- Lower the transmission jack away from the transmission.
- Reposition the transmission jack away from the vehicle.
General Equipment: Transmission jack
4.
- Install the left side undershield.
- Install and tighten the 13 bolts.
Torque: 5.4Nm
5.
- Install the transmission undershield.
- Install and tighten the 14 bolts.
Torque: 10Nm
