Land Rover Defender: Towbar
SPECIFICATIONS
Torque Specifications
NOTE: Numbers with a green background are a single use components.

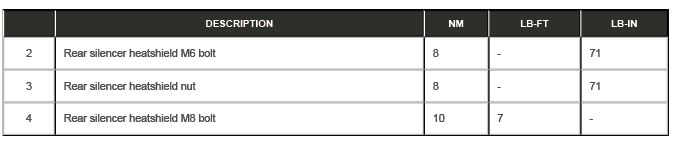

COMPONENT TORQUE LOCATION
.png)
.png)

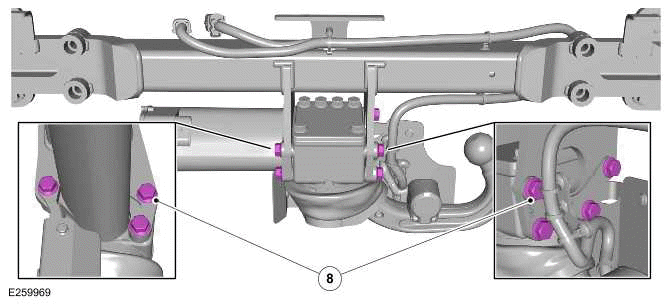

COMPONENT TORQUE LOCATION
.png)
.png)

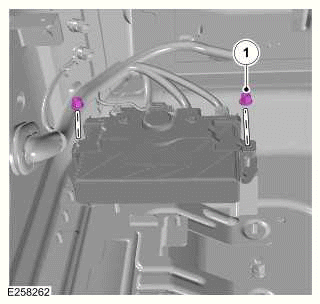

COMPONENT TORQUE LOCATION
.png)
.png)

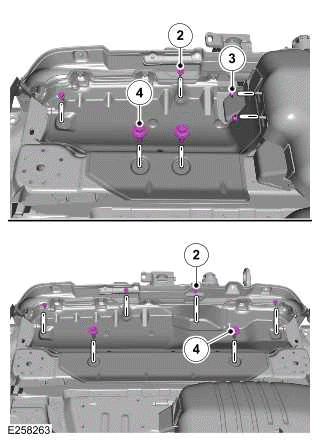

COMPONENT TORQUE LOCATION
.png)
.png)

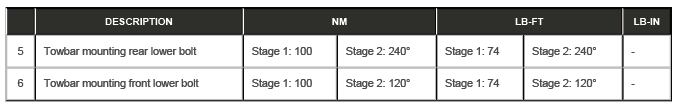

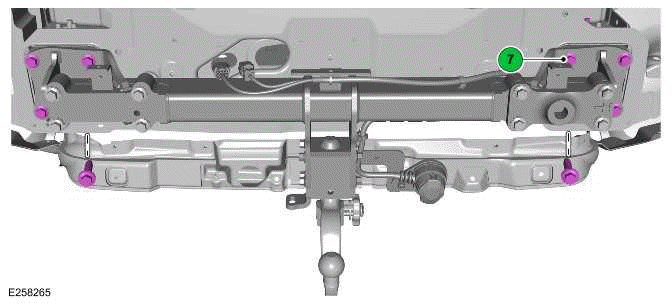

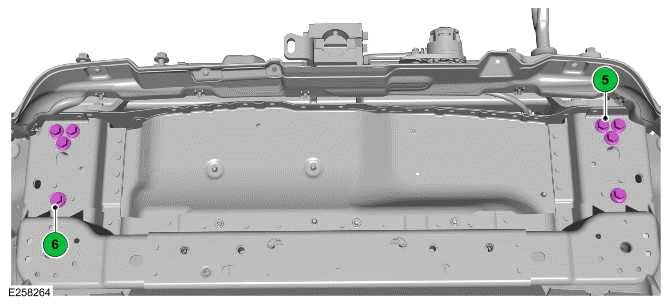

COMPONENT TORQUE LOCATION
.png)
.png)
- Towbar - Component Location, Overview
- Towbar - Description
- Towbar - Operation
- Towbar Control Module
- Deployable Towbar Control Module
READ NEXT:
Towbar - Component Location, Overview
COMPONENT LOCATION
COMPONENT LOCATION - 1 OF 1
NOTE:
Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
Deployable towbar and trailer lamp test switch
Deployable towbar assembly
Depl
Towbar - Description
DESCRIPTION
DEPLOYABLE TOWBAR
NOTE:
Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
Deployed position
Stowed position
Electrical connector (quantity 2)
Cross beam
Trailer sock
Towbar - Operation
DEPLOYABLE TOWBAR
The deployable towbar operates when the vehicle is stationary and the
selected transmission gear position is PARK or
NEUTRAL.
Press the deployable towbar switch to deploy the towba
