Land Rover Defender: Front Stabilizer Bar Link
Land Rover Defender 2020-2025 Service Manual / Chassis / Suspension / Front Suspension / Front Stabilizer Bar Link
REMOVAL AND INSTALLATION

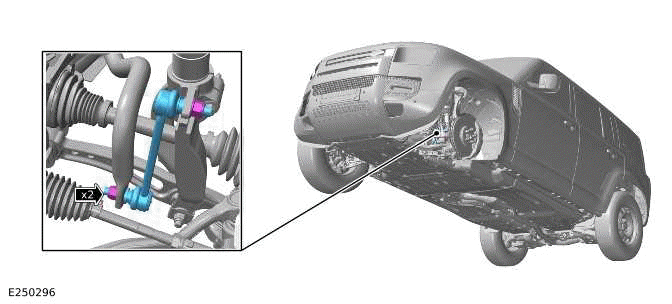

PART(S)
.png)
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains illustrations for left side components, right side components are similar.
1. Raise and support the vehicle on a suitable 2 post lift.
2. Remove the front wheel and tire assembly.
3.
CAUTION: Use a suitable tool to prevent the ball joint rotating.
.png)
- Remove and discard the 2 nuts.
- Remove the front stabilizer bar link.
INSTALLATION
1.
CAUTION: Use a suitable tool to prevent the ball joint rotating.
- Install the front stabilizer bar link.
- Install and tighten the 2 nuts.
Renew Part: Stabilizer bar link nuts Quantity: 2.
Torque: 185Nm
2. Install the front wheel and tire assembly.
