Land Rover Defender: Front Row Seat - Vehicles With: Power Seats
REMOVAL AND INSTALLATION
REMOVAL
WARNINGS:
- To avoid accidental deployment, the Restraints Control Module (RCM) backup power supply must be depleted. Wait at least 1 minute after disconnecting the startup battery ground cable(s) before doing any repair or adjustment to the Supplementary Restraint System (SRS), or any component(s) adjacent to the SRS sensors. Failure to follow these instructions may result in personal injury.
- Do not probe the Supplementary Restraint System (SRS) electrical connectors.
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1.
.png)

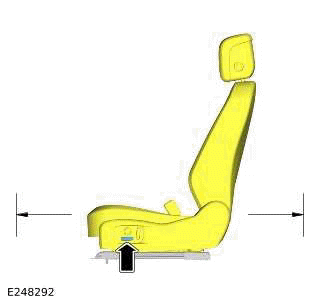

Position the front row seat backward.
2.
.png)

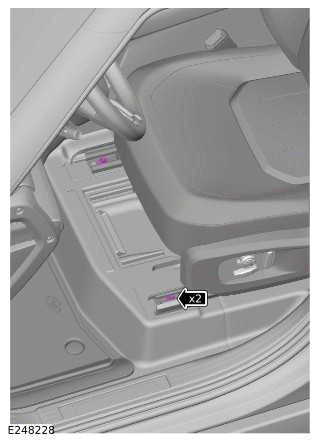

Remove the 2 front row seat track bolts.
3.
.png)
Position the front row seat forward.
4.
.png)

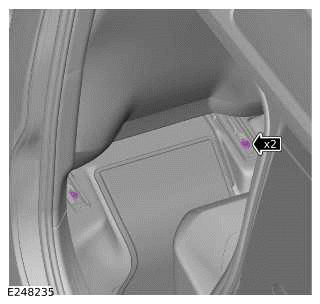

Remove the 2 front row seat track bolts.
5.
CAUTION: Take care not to damage the front row seat side trim during removal. Examine illustration before removal.
.png)

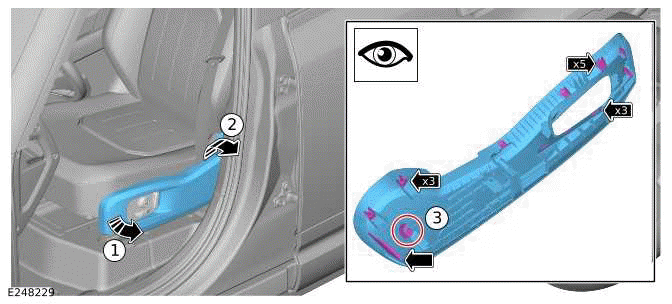

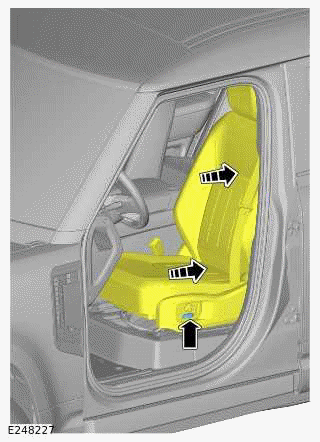

- Release the front row seat side trim front section.
- Release the front row seat side trim rear section.
- Release the highlighted clip and remove the front row seat side trim.
6.
.png)
Reposition the front row seat to the center position.
7. Disconnect the startup battery ground cable.
8. Make the Supplementary Restraint System (SRS) safe.
9.
NOTE: If equipped.
.png)
- Disconnect the front row seatbelt pretensioner electrical connector.
- Remove the front row seatbelt pretensioner bolt access cover.
10.
.png)

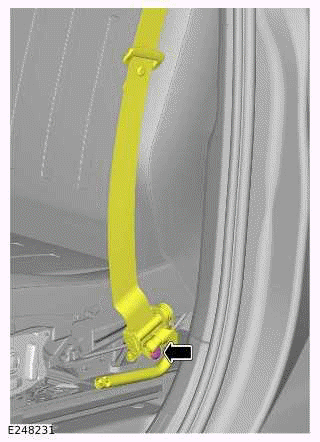

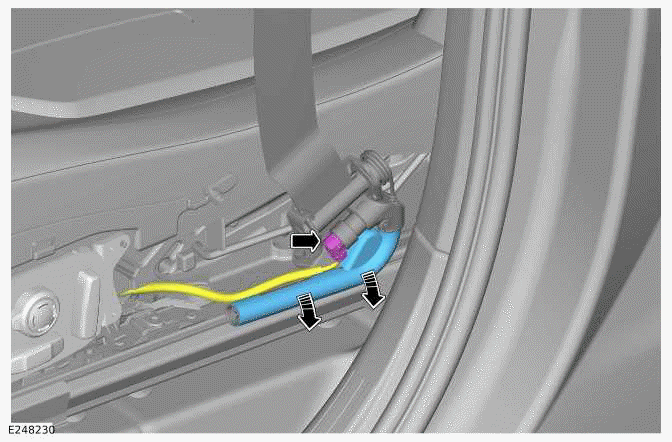

- Remove the front row seatbelt pretensioner bolt.
- Release the front row seatbelt pretensioner assembly.
11.
.png)

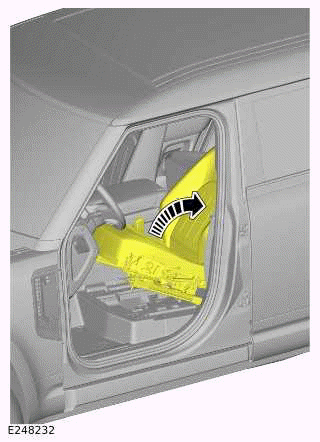

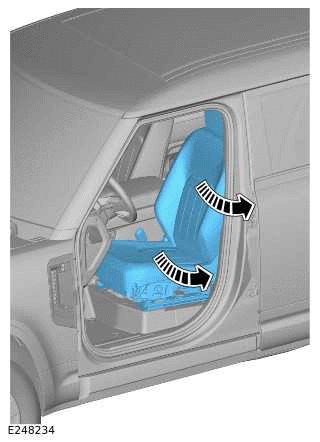

Carefully tip the front row seat.
12.
.png)

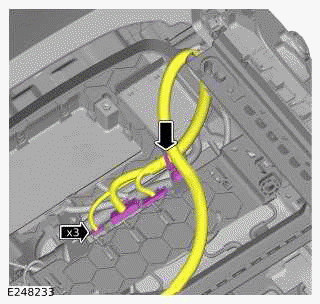

- Disconnect the 3 electrical connectors.
- Release the wiring harness clip.
13.
CAUTIONS:
- Protect the surrounding paintwork to avoid damage.
- Protect the surrounding trim to avoid damage.
.png)

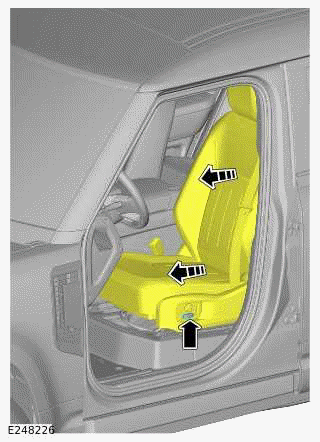

Remove the front row seat.
INSTALLATION
1.
CAUTIONS:
- Protect the surrounding paintwork to avoid damage.
- Protect the surrounding trim to avoid damage.
Install the front row seat.
2. Carefully tip the front row seat.
3.
- Connect the 3 electrical connectors.
- Install the wiring harness clip.
4. Carefully tip the front row seat.
5.
NOTE: If equipped.
- Install the front row seatbelt pretensioner assembly.
- Install and tighten the bolt.
Torque: 40Nm
- Install the seatbelt pretensioner bolt access cover.
- Connect the seatbelt pretensioner electrical connector.
6. Connect the startup battery ground cable.
7. Position the front row seat forward.
8. Install and tighten the 2 rear seat track bolts.
Torque: 48Nm
9. Position the front row seat backward.
10. Install and tighten the 2 front seat track bolts.
Torque: 48Nm
11. Reposition the front row seat to the center position.
12.
CAUTION: Make sure all the clips are correctly installed.
Install the front row seat side trim.
