Land Rover Defender: Front Row Seat Track Motor - Vehicles Without: Power Seats
REMOVAL AND INSTALLATION
PART(S)
.png)
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Remove the front row seatbelt buckle.
2. Remove the front row seat cushion cover.
3.
.png)

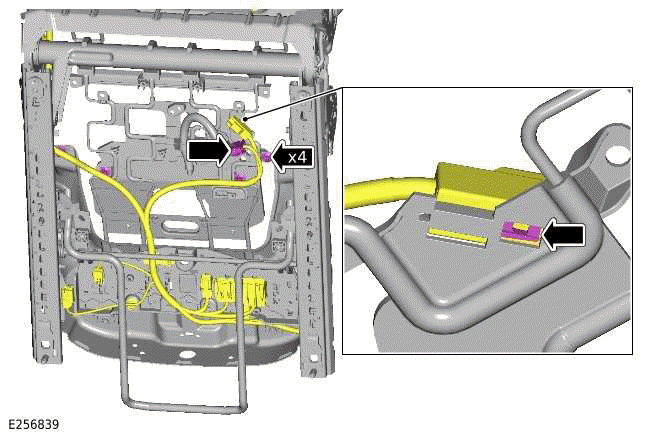

- Disconnect the electrical connector.
- Release the 4 wiring harness clips.
- Release the wiring harness clip from the seat base.
4.
.png)

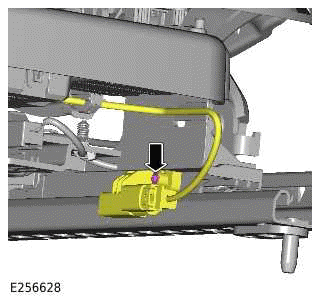

Remove the bolt.
5.
.png)

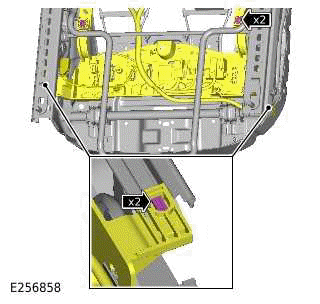

- Remove the 2 bolts.
- Release the 2 clips.
- Reposition the seat tray away from the seat base.
6.
.png)

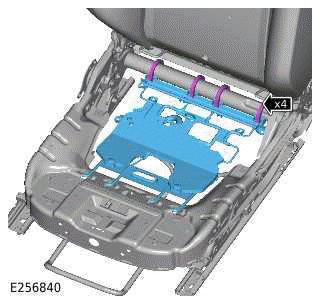

- Release the 4 clips.
- Remove the seat base.
7.
.png)

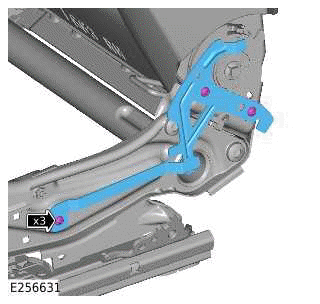

- Remove the 3 bolts.
- Remove the side trim panel bracket.
8.
.png)

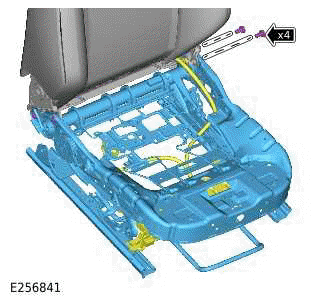

- Remove and discard the 4 bolts.
- Reposition the wiring harness away from the seat base.
- Remove the front seat track assembly.
INSTALLATION
1.
- Install the front seat track assembly.
- Install the wiring harness into the correct location.
- Install and tighten the 4 new bolts.
- Renew Part: Front seat frame bolt(s) Quantity: 4.
Torque: 35Nm
2.
- Install the side trim panel bracket.
- Install and tighten the 3 bolts.
3.
- Install the seat base.
- Install the 4 clips.
4.
- Install the seat tray in the correct position.
- Install the 2 clips.
- Install and tighten the 2 bolts.
5. Install and tighten the bolt.
6.
- Install the 4 wiring harness clips.
- Install the wiring harness clip to the seat base.
- Connect the electrical connector.
7. Install the front row seat cushion cover.
8. Install the front row seatbelt buckle.
