Land Rover Defender: Second Row Seat Armrest
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1.
.png)

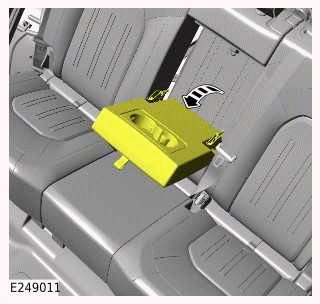

Lower the second row seat armrest.
2.
.png)

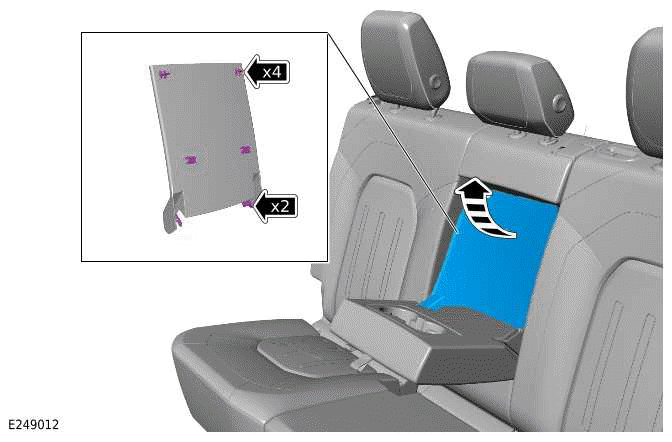

- Release the 6 clips.
- Remove the trim panel.
3.
.png)

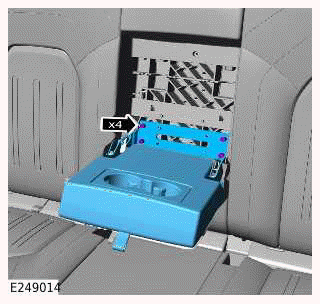

- Remove the 4 bolts.
- Remove the second row seat armrest.
INSTALLATION
1.
- Install the second row seat armrest.
- Install and tighten the 4 bolts.
Torque: 10Nm
2.
- Install the 6 clips.
- Install the trim panel to the second row seat backrest.
3. Raise the second row seat armrest.
