Land Rover Defender: Front Row Seat Memory Switchpack
Land Rover Defender 2020-2025 Service Manual / Body and Paint / Seating / Front Row Seat Memory Switchpack
REMOVAL AND INSTALLATION
REMOVAL
CAUTION:
- Use a suitable trim tool.
- Care must be taken to avoid damaging the surrounding components.
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations for left side components, right side components are similar.
1. Disconnect the startup battery ground cable.
2. Remove the front door trim panel.
3.
.png)

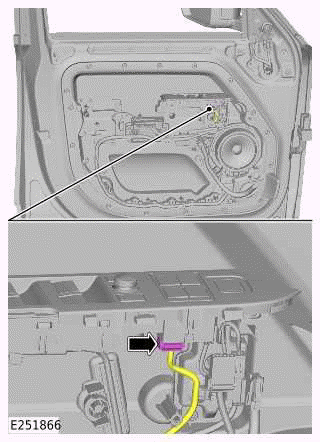

Disconnect the electrical connector.
4.
.png)

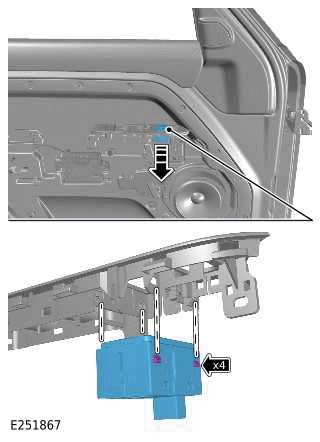

- Carefully release the 4 clips.
- Remove the front row seat memory switchpack.
INSTALLATION
1. Install the front row seat memory switchpack.
2. Connect the electrical connector to the front row seat memory switchpack.
3. Install the front door trim panel.
4. Connect the startup battery ground cable.
