Land Rover Defender: Front Row Seat Cushion - Vehicles With: Row Specification

Land Rover Defender 2020-2026 Service Manual / Body and Paint / Seating / Front Row Seat Cushion - Vehicles With: Row Specification

REMOVAL AND INSTALLATION

REMOVAL

NOTE:

The following step(s) applies to: All vehicles

1. Remove the front row seat cushion cover.

2.

NOTE: If equipped.

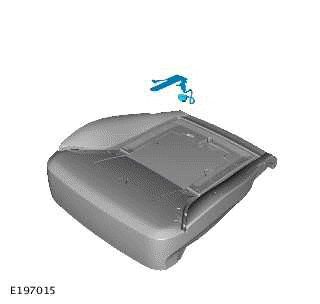

Front Row Seat Cushion - Vehicles With: Row Specification

Remove the Occupant Detection Sensor (ODS).

The following step(s) applies to: Vehicles with climate controlled seats

3.

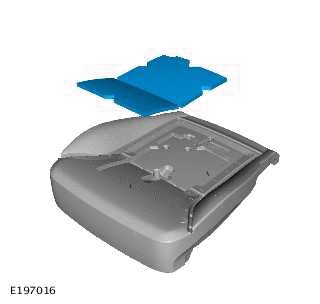

Front Row Seat Cushion - Vehicles With: Row Specification

Remove the climate control insert.

The following step(s) applies to: Vehicles with heated front row seats

4.

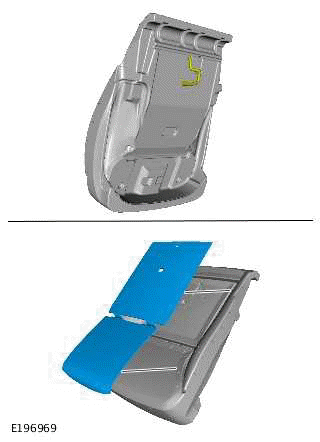

Front Row Seat Cushion - Vehicles With: Row Specification

Remove the front row seat cushion heater element.

INSTALLATION

The following step(s) applies to: All vehicles

1.

NOTE: If equipped.

Install the Occupant Detection Sensor (ODS).

The following step(s) applies to: Vehicles with heated front row seats

2. Install the front row seat cushion heater element.

The following step(s) applies to: Vehicles with climate controlled seats

3. Install the climate control insert.

The following step(s) applies to: All vehicles

4. Install the front row seat cushion cover.
