Land Rover Defender: Front Row Seat Cushion Blower
Land Rover Defender 2020-2024 Service Manual / Body and Paint / Seating / Front Row Seat Cushion Blower
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Remove the front row seat.
2.
CAUTION: Take extra care not to damage the wiring harnesses.
.png)

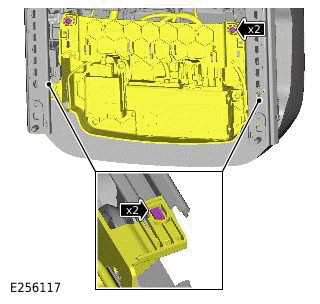

- Remove the 2 screws.
- Release the 2 clips.
- Reposition the front seat tray to get access to the lower blower motor screws.
3.
.png)

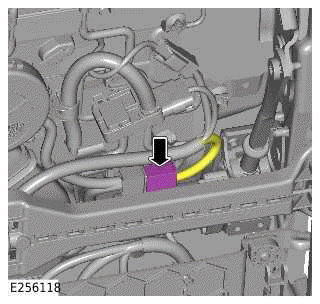

Disconnect the blower motor electrical connector.
4.
.png)

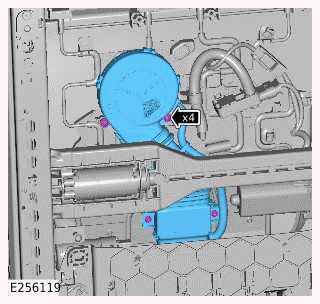

- Remove the 4 screws.
- Remove the front row seat cushion blower.
INSTALLATION
1.
- Install the front row seat cushion blower.
- Install and tighten the 4 screws.
2. Connect the blower motor electrical connector.
3.
- Reposition the front seat tray in to the correct position.
- Install the 2 clips.
- Install and tighten the 2 screws.
4. Install the front row seat.
