Land Rover Defender: Front Row Seat Cushion - Vehicles With: Nas Specification
REMOVAL AND INSTALLATION
REMOVAL
CAUTION:
The front passenger seat heater mat and Restraints Occupant Classification
System Module (OCS) are
available only as a service kit. No attempt should be made to replace individual
components. Failure to follow
this instruction may result in personal injury
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Remove the front row seat cushion cover.
2.
NOTE:
If equipped.
.png)
Remove the front row seat cushion heater element.
3.
.png)

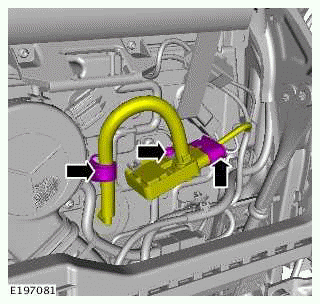

- Disconnect the electrical connector.
- Remove the screw.
- Release the pipe from the clip.
4.
CAUTION:
Note the Installed position of the component prior to removal.
.png)

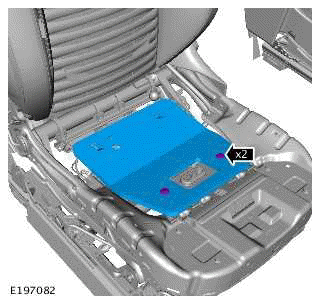

- Remove the 2 clips.
- Remove the OCS.
INSTALLATION
1.
CAUTION:

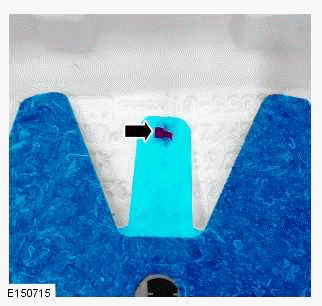

Remove the retaining clip prior to installing the service kit.
.png)
Remove the retaining clip.
2.
CAUTION:

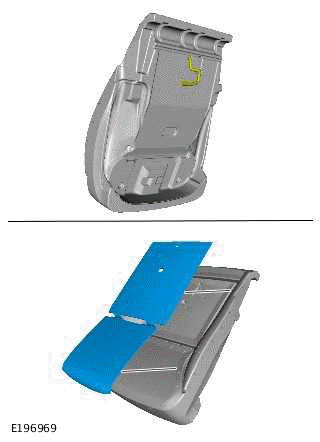

The occupant classification sensor service kit must not be separated and it must
be installed as
provided.
.png)
3.
- Install the OCS.
- Install the 2 clips.
4.
- Install and tighten the screw.
- Connect the electrical connector.
- Install the pipe to the clip.
5.
NOTE:
If equipped.

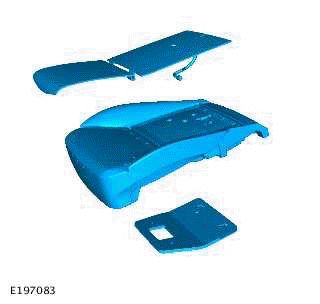

.png)
Install the front row seat cushion heater element.
6. Install the front row seat cushion cover.
7.
NOTE:
Make sure that the front seats are empty during this process.
If a new service kit is installed, configure the OCS using the approved
Jaguar Land Rover (JLR) diagnostic
tool and clear any Diagnostic Trouble Code(s) (DTC)
