Land Rover Defender: WI-FI Antenna - Left Hand Drive
Land Rover Defender 2020-2026 Service Manual / Electrical / Information and Entertainment System / WI-FI Antenna - Left Hand Drive
REMOVAL AND INSTALLATION
REMOVAL
CAUTION: Do not use excessive force to remove the component. Make sure that all fixings are fully released.
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- Make sure that the retaining clips are correctly installed.
1. Disconnect the startup battery ground cable.
2.
.png)

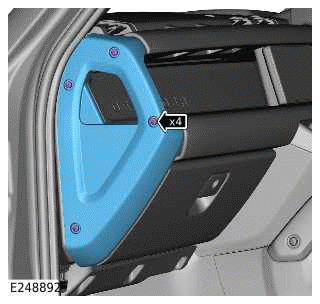

- Remove the 4 bolts.
- Remove the instrument panel passenger side trim panel.
3.
.png)

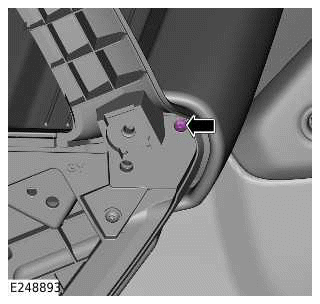

Remove the bolt.
4.
.png)

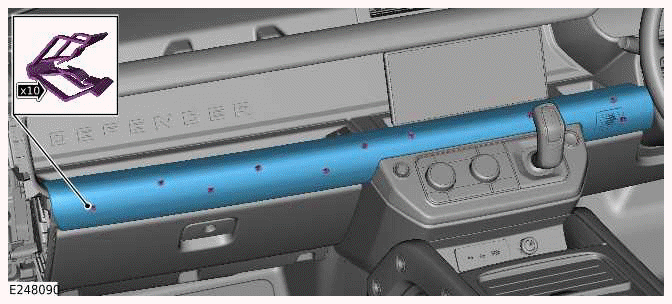

- Release the 10 clips.
- Remove the instrument panel lower surround trim.
5.
.png)

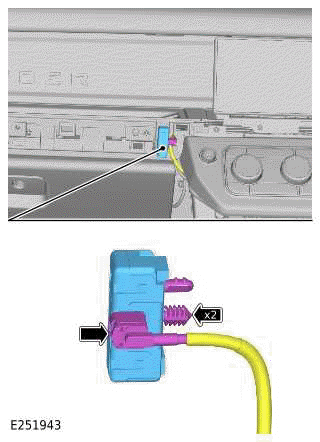

- Disconnect the electrical connector.
- Release the 2 clips.
- Remove the WiFi antenna.
INSTALLATION
1.
- Install the WiFi antenna.
- Install the 2 clips.
- Connect the electrical connector to the WiFi antenna.
2.
- Install the instrument panel lower surround trim.
- Install the 10 clips.
- Install and tighten the bolt.
Torque: 1.7Nm
3.
- Install the instrument panel passenger side trim panel.
- Install and tighten the 4 bolts.
Torque: 2.5Nm
4. Connect the startup battery ground cable.
