Land Rover Defender: Front Row Seat Backrest Heater Element

Land Rover Defender 2020-2024 Service Manual / Body and Paint / Seating / Front Row Seat Backrest Heater Element

REMOVAL AND INSTALLATION

REMOVAL

NOTE:

1. Disconnect the startup battery ground cable.

2. Remove the front row seat backrest cover.

3.

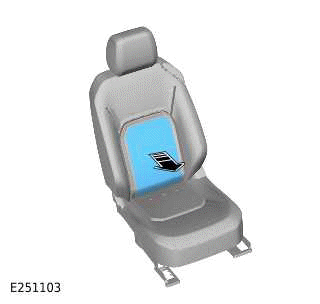

Front Row Seat Backrest Heater Element

Disconnect the electrical connector.

4.

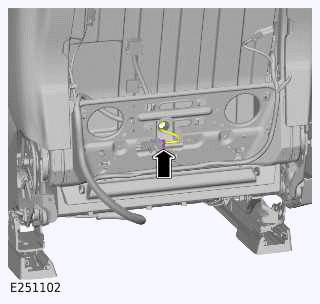

Front Row Seat Backrest Heater Element

Remove the front row seat backrest heater element.

INSTALLATION

1. Install the heater element to the seat backrest.

2. Connect the electrical connector to the heater element.

3. Install the front row seat backrest cover.

4. Connect the startup battery ground cable.
