Land Rover Defender: Fuel Level Sensor
REMOVAL AND INSTALLATION
GENERAL EQUIPMENT
.png)
REMOVAL
CAUTION:
Be prepared to collect escaping fluids.
NOTE:
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
1. Always follow the Petrol and Petrol-Ethanol Fuel System Health and Safety
Precautions.
2. Disconnect the startup battery ground cable.
3. Remove the fuel pump module.

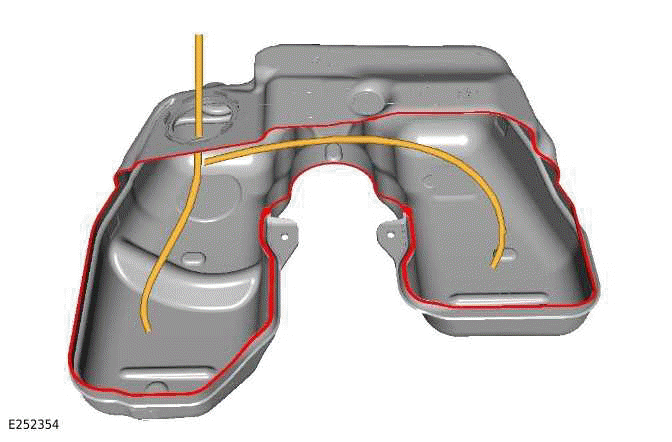

4.
CAUTION:
Take care not to damage the fuel tank internal components.
.png)

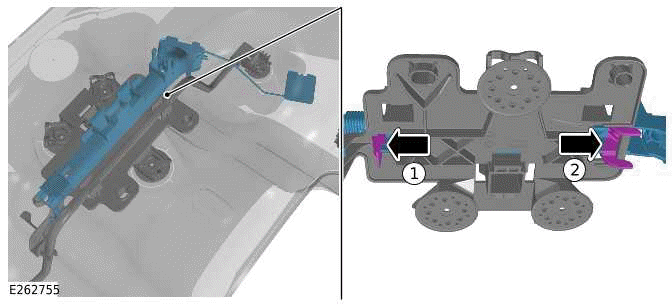

5.
.png)
- Release the 2 clips in the sequence illustrated.
- Remove the fuel level sensor and bracket assembly.

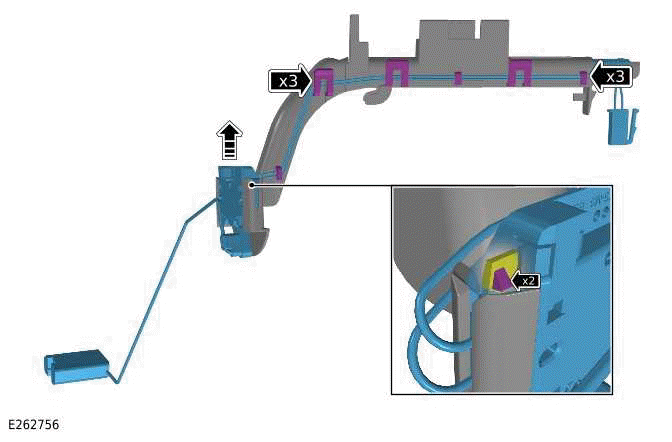

6.
.png)
- Release the 6 cable clips.
- Release the fuel level sensor from 2 clips.
- Remove the fuel level sensor.
INSTALLATION
1.
- Install the fuel level sensor to the 2 clips.
- Install the fuel level sensor cable to the 6 clips.
2.
- Install the fuel level sensor and bracket assembly.
- Install the 2 clips.
3. Install the fuel pump module.
4.
5. Bleed the Low Pressure (LP) fuel system.
6. Connect the startup battery ground cable.
