Land Rover Defender: Front Lower Control Arm Bush
REMOVAL AND INSTALLATION
SPECIAL TOOL(S)
.png)
JLR-204-816
Remover, Bush
.png)
JLR-204-817
Installer, Bush
.png)
JLR-204-818
Remover/Support, Bush
GENERAL EQUIPMENT
.png)
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2-post lift.
2. Remove the front lower control arm.
3.
.png)

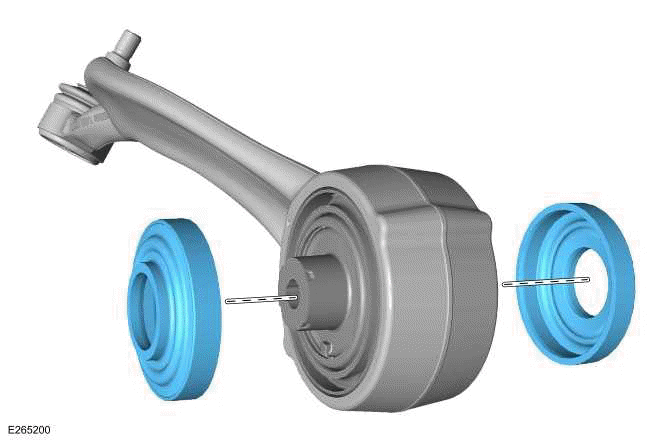

Remove the 2 protective covers.
4.
CAUTION: Failure to follow this instruction may result in damage to the vehicle.
NOTES:
- Illustration shows basic alignment.
- Left-hand shown.
.png)

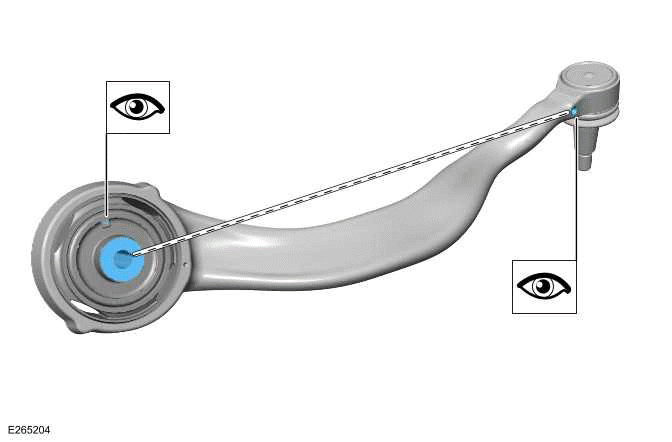

Note the position of the front lower control arm bush.
5.
CAUTION: Failure to follow this instruction may result in damage to the vehicle.
NOTES:
- Illustration shows basic alignment.
- Right-hand shown.
.png)

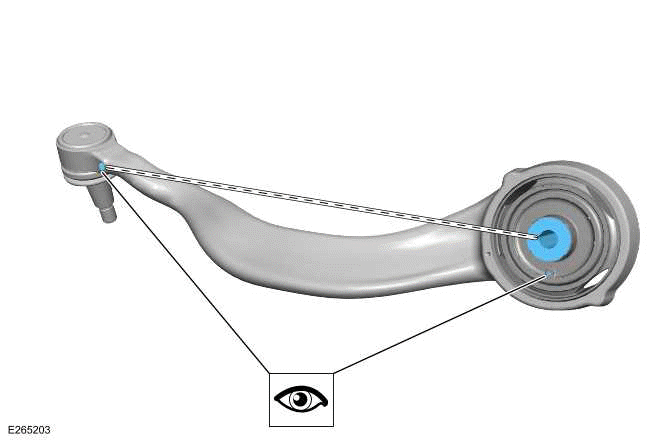

Note the position of the front lower control arm bush.
6.
CAUTION: Make sure the special tools are in the correct orientation. Failure to follow this instruction may result in damage to the vehicle and tools.
.png)

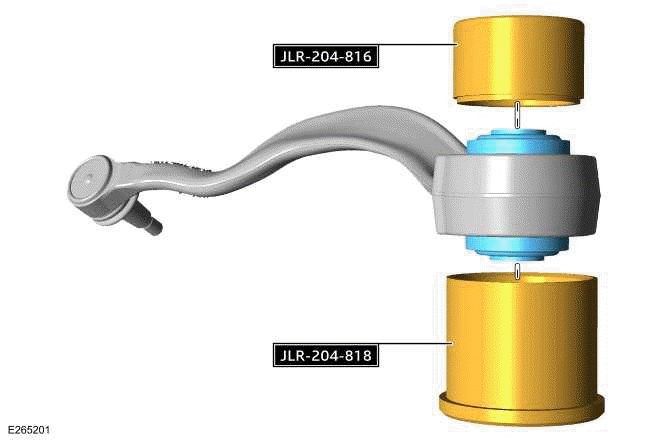

- Install the special tools in the correct orientation.
Special Tool(s): JLR-204-816, JLR-204-818
- Use a suitable hydraulic press to remove the front lower control arm
bush.
General Equipment: Hydraulic press
INSTALLATION
1.
.png)

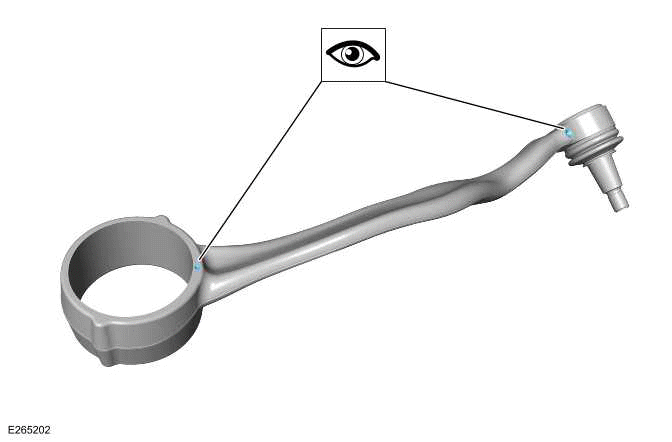

Note the 2 timing marks for the installation.
2.
.png)

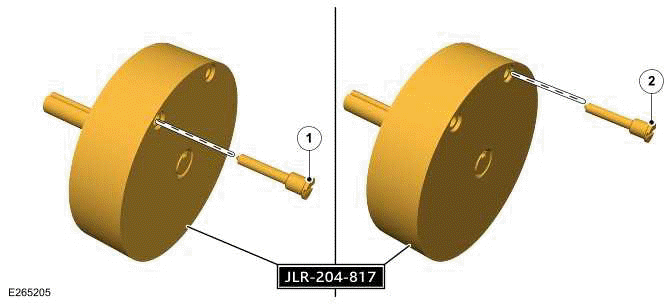

- Assemble the special tool of the appropriate side.
Special Tool(s): JLR-204-817
- Position 1, left front lower control arm.
- Position 2, right front lower control arm.
3.
CAUTION: Make sure the special tool is in the correct orientation. Failure to follow this instruction may result in damage to the vehicle and tool.
.png)

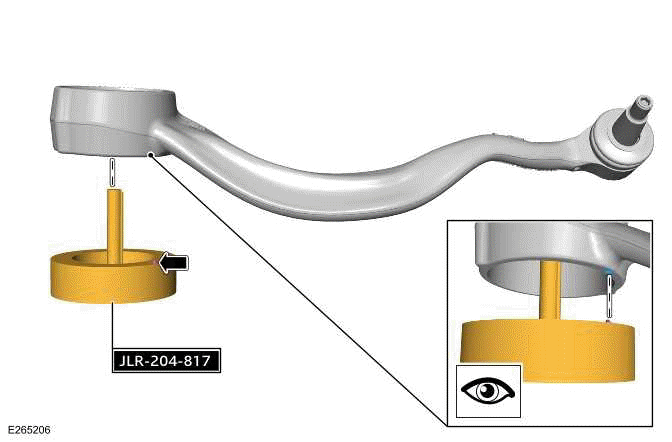

Install the special tool in the correct orientation.
Special Tool(s): JLR-204-817
4.
CAUTIONS:
- Make sure bush is positioned in the correct orientation. Failure to follow this instruction may result in damage to the vehicle.
- Make sure the special tools are in the correct orientation. Failure to follow this instruction may result in damage to the vehicle and tools.
.png)

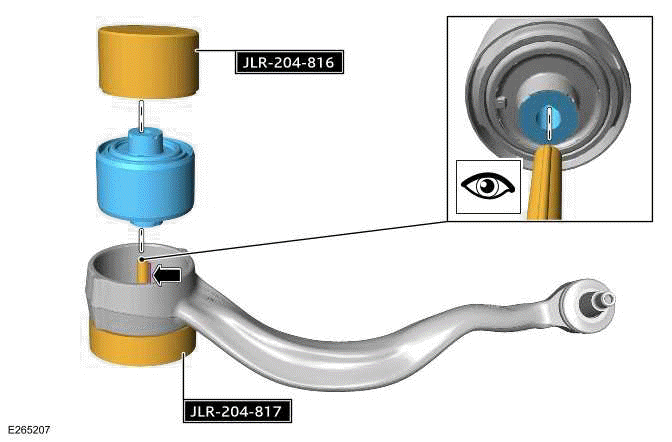

- Position the front lower control arm bush to the special tool as shown.
- Install the special tool in the correct orientation.
Special Tool(s): JLR-204-816
- Use a suitable hydraulic press to install the front lower control arm
bush.
General Equipment: Hydraulic press
5.
CAUTION: Failure to follow this instruction may result in damage to the vehicle.
NOTES:
- Illustration shows basic alignment.
- Left-hand shown.
.png)
Check the position of the front lower control arm bush.
6.
CAUTION: Failure to follow this instruction may result in damage to the vehicle.
NOTES:
- Illustration shows basic alignment.
- Right-hand shown.
.png)
Check the position of the front lower control arm bush.
7.
.png)
Install the 2 protective covers.
8. Install the front lower control arm.
