Land Rover Defender: Front Door Impact Pressure Sensor
Land Rover Defender 2020-2026 Service Manual / Body and Paint / Supplementary Restraint System / Front Door Impact Pressure Sensor
REMOVAL AND INSTALLATION
REMOVAL
WARNINGS:
- To prevent accidental deployment, you must power down the Restraints Control Module (RCM). Wait at least 1 minute after you disconnect the startup battery ground cable before you do any work on the Supplementary Restraint System (SRS). If you do not follow these instructions, it can cause injury or death.
- Do not connect any electrical test device or equipment to the SRS connectors.
- Always wear safety glasses when working on an airbag equipped vehicle
and when handling an airbag.
Failure to follow this instruction may result in personal injury.
NOTES:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations for left side components, right side components are similar.
1. Make the Supplementary Restraint System (SRS) safe.
2. Disconnect the startup battery ground cable.
3. Remove the front door trim panel.

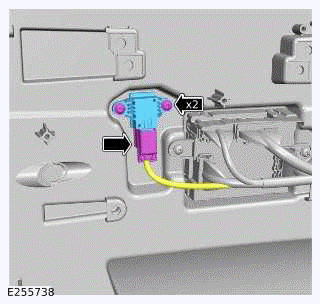

4.
.png)
- Disconnect the electrical connector from the front door impact pressure sensor.
- Remove the 2 screws.
- Remove the front door impact pressure sensor.
INSTALLATION
1.
- Install the front door impact pressure sensor.
- Install and tighten the 2 screws.
Torque: 1.9Nm
- Connect the electrical connector to the front door impact pressure sensor.
2. Install the front door trim panel.
3. Connect the startup battery ground cable.
