Land Rover Defender: Interior Rear View Mirror
Land Rover Defender 2020-2025 Service Manual / Body and Paint / Rear View Mirrors / Interior Rear View Mirror
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1.
.png)

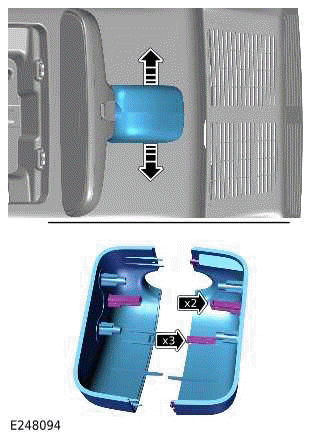

- Release the 5 clips.
- Remove the cover.
2.
.png)

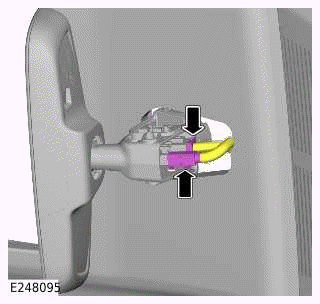

Disconnect the 2 electrical connectors.
3.
CAUTION: To avoid damage to the rear view mirror, make sure force is only applied at the rear view mirror mounting bracket.
.png)

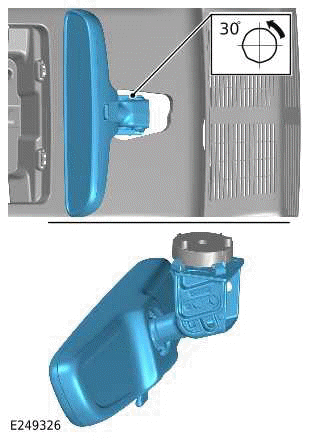

- Rotate the rear view mirror mounting bracket 30 degrees counterclockwise.
- Remove the rear view mirror.
INSTALLATION
1.
NOTE: Before rotating the part into position, Make sure that the 4 retainers on the mounting bracket have fully engaged with the base. To install, rotate the rear view mirror mounting bracket 30 degrees in the clockwise direction. An audible click may be heard.
Install the rear view mirror.
2. Connect the 2 electrical connectors.
3. Install the cover.
