Land Rover Defender: Canvas Roof Side Finisher
Land Rover Defender 2020-2025 Service Manual / Body and Paint / Roof Opening Panel / Canvas Roof Side Finisher
REMOVAL AND INSTALLATION
REMOVAL
WARNING: Make sure the ignition is OFF before carrying out this procedure.
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains illustrations for left side components, right side components are similar.
1.
.png)

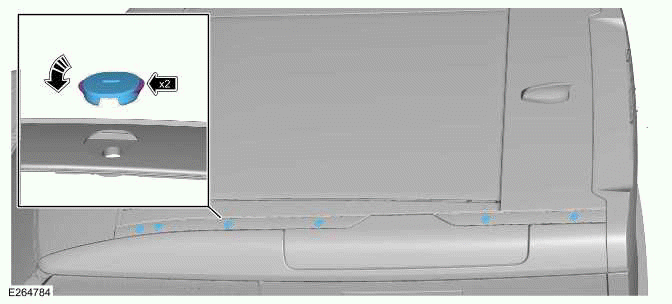

Remove the 6 roof moulding bolt covers.
2.
.png)

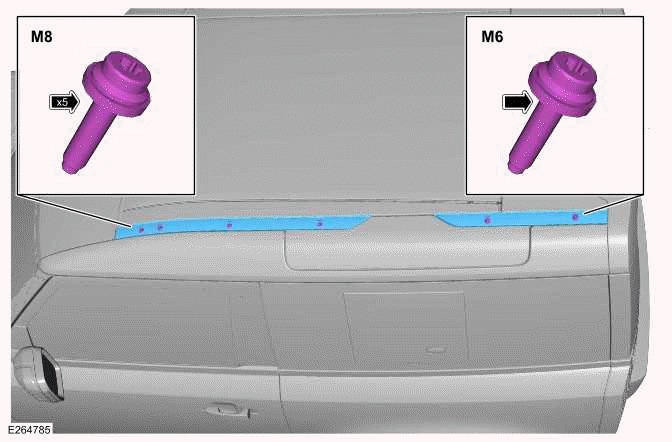

- Remove the 5 M8 bolts and the M6 bolt.
- Remove the 2 roof mouldings.
3.
CAUTIONS:
- If any clips are damaged, replace as necessary.
- Take extra care not to damage the component.
.png)

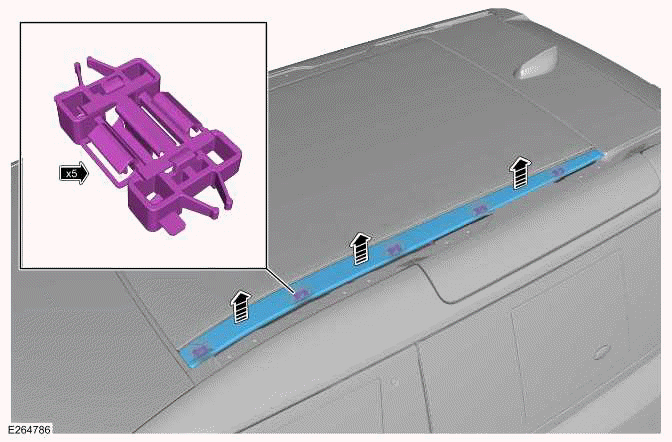

Remove the canvas roof side finisher at the 5 clips.
INSTALLATION
1.
CAUTION: Take extra care not to damage the component.
Install the canvas roof side finisher at the 5 clips.
2.
- Install the 2 roof mouldings.
- Install and tighten the 5 M8 bolts.
Torque: 8Nm
- Install and tighten the M6 bolt.
Torque: 8Nm
- Install the 6 roof moulding bolt covers.
