Land Rover Defender: Canvas Roof Weatherstrip
REMOVAL AND INSTALLATION
MATERIALS
.png)
REMOVAL
WARNING:
Make sure the ignition is OFF before carrying out this procedure.
NOTES:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Remove the canvas roof outer canvas.
2. Remove both canvas roof side finishers.
3.
NOTE:
The weatherstrip is attached with double-sided adhesive tape to the frame.
.png)
Remove the canvas roof weatherstrip.
INSTALLATION
1.
CAUTIONS:
- Protect the surrounding paintwork to avoid damage.
- Protect the surrounding components.
- Make sure that the mating faces are clean and free of foreign
material.
.png)

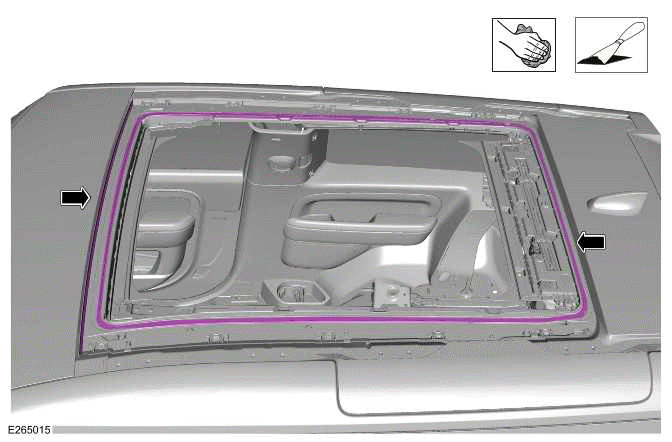

Use suitable plastic tool, to remove all adhesives from the frame.
2.
CAUTIONS:
- Make sure all mating faces are clean and dry before applying sealant.
- Touching the adhesive surface will impair re-bonding.
- Do not stretch the canvas roof weatherstrip during installation.
- Make sure the pressure is equal on all faces of the seal.

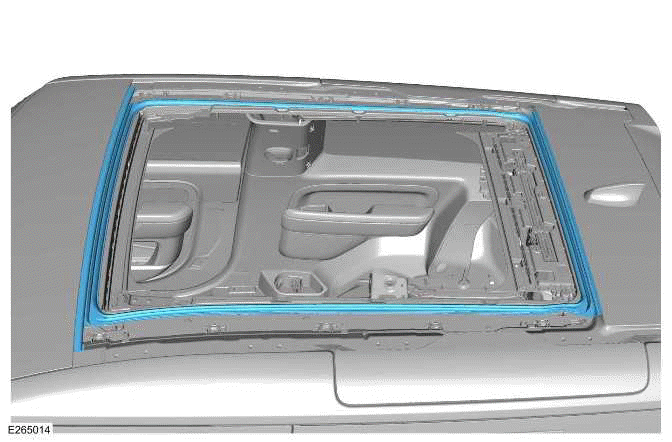

.png)
3. Install the canvas roof outer canvas.
4. Install the canvas roof side finisher on both side.
5.
.png)

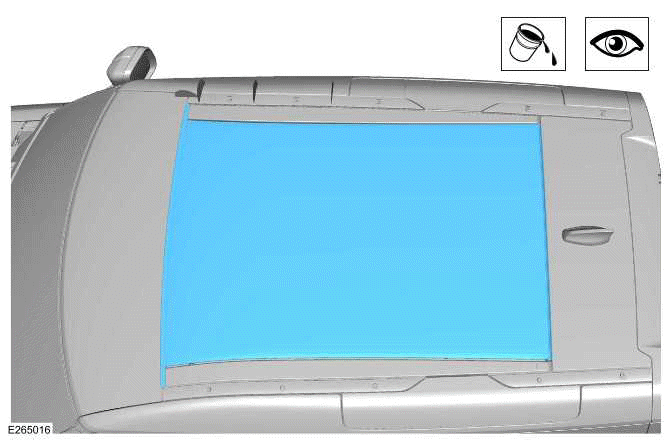

- Spray water around the canvas roof frame.
- Inspect for any possible leaks.
