Land Rover Defender: B-Pillar Side Impact Sensor
REMOVAL AND INSTALLATION
REMOVAL
WARNING:
NOTE:
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations for left side components, right
side components are similar.
1. Disconnect the startup battery ground cable.
2. Remove the front treadplate.
3.
.png)

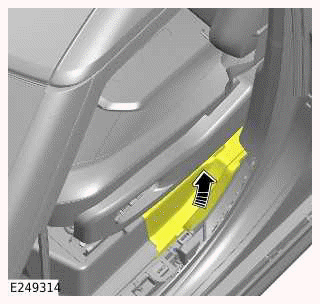

Reposition the front floor carpet away from the B-pillar side impact sensor.
4.
.png)

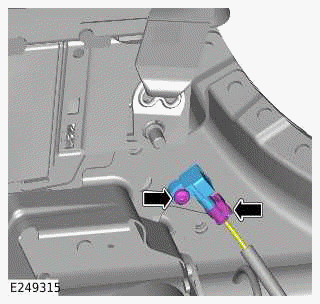

- Disconnect the electrical connector.
- Remove the bolt.
- Remove the B-pillar side impact sensor.
INSTALLATION
1.
- Install the B-pillar side impact sensor.
- Install and tighten the bolt.
Torque: 11Nm
- Connect the electrical connector.
2. Reposition the front floor carpet into the correct location.
3. Install the front treadplate.
4. Connect the startup battery ground cable.
