Land Rover Defender: Acceleration Control
SPECIFICATIONS

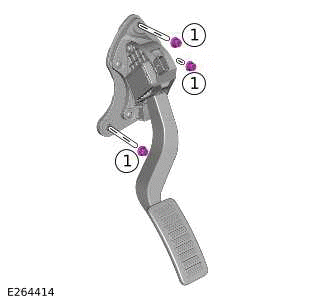

COMPONENT TORQUE LOCATION
.png)
.png)
Accelerator Pedal
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- Left Hand Drive illustration(s) shown, Right Hand Drive is similar.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Disconnect the startup battery ground cable.
2.
.png)

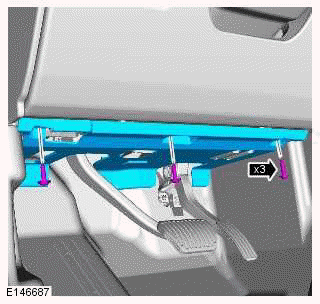

- Remove the 3 bolts.
- Remove the instrument panel lower trim.
3.
.png)

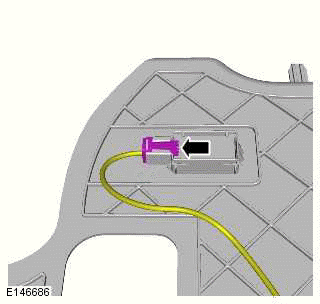

Disconnect the electrical connector from the footwell lamp.
4.
.png)

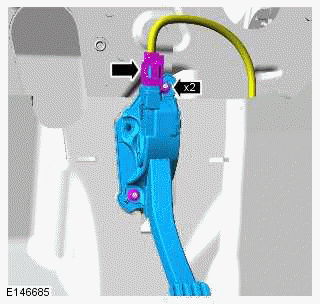

- Disconnect the electrical connector from the accelerator pedal.
- Remove the 2 nuts.
- Remove the accelerator pedal.
INSTALLATION
1.
- Install the accelerator pedal.
- Install and tighten the 2 nuts.
Torque: 9Nm
- Connect the electrical connector to the accelerator pedal.
2. Connect the electrical connector to the footwell lamp.
3.
- Install the instrument panel lower trim.
- Install and tighten the 3 bolts.
4. Connect the startup battery ground cable.
