Land Rover Defender: Deployable Towbar Control Module

Land Rover Defender 2020-2025 Service Manual / Body and Paint / Towbar / Deployable Towbar Control Module

REMOVAL AND INSTALLATION

GENERAL EQUIPMENT

Deployable Towbar Control Module

REMOVAL

NOTES:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

1. Disconnect the startup battery ground cable.

Deployable Towbar Control Module

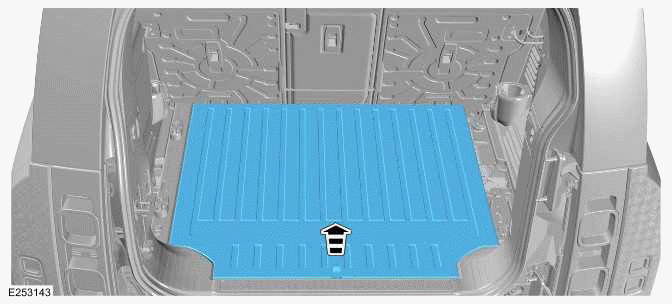

Remove the loadspace floor trim.

Deployable Towbar Control Module

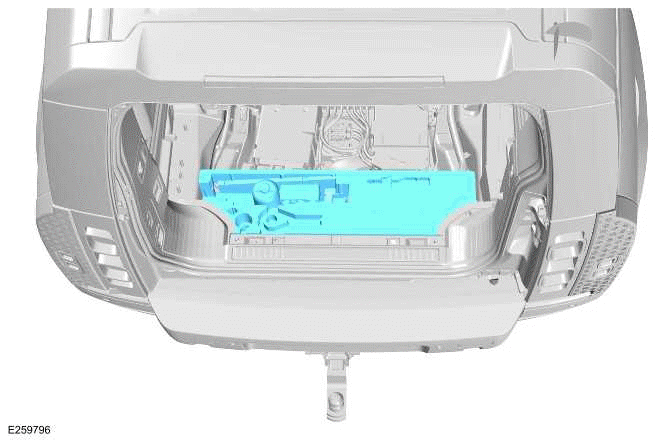

Remove the stowage compartment.

Deployable Towbar Control Module

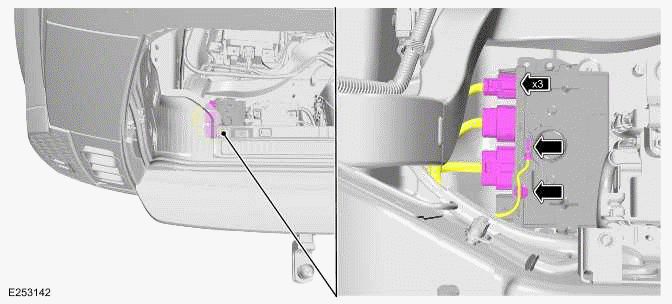

Disconnect the 3 electrical connectors from the deployable Tow Bar Control Module (TBM).
Disconnect the electrical connector from the speaker.
Release the speaker wiring harness from the clip.

Deployable Towbar Control Module

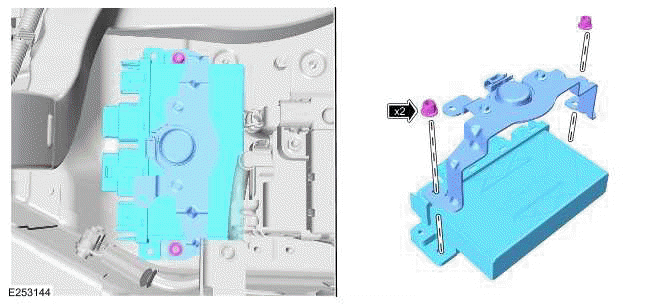

Remove the 2 nuts.
Remove the speaker and bracket assembly.
Remove the deployable TBM.
