Land Rover Defender: Emergency Key Barrel
Land Rover Defender 2020-2026 Service Manual / Body and Paint / Handles, Locks, Latches and Entry Systems / Emergency Key Barrel
REMOVAL AND INSTALLATION
REMOVAL
CAUTION: Protect the surrounding paintwork to avoid damage.
NOTES:
- This procedure contains illustrations for right hand drive vehicles, left hand drive vehicles are similar.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

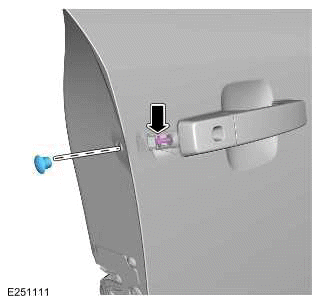

1.
.png)
- Open the driver door.
- Remove the access plug.
- Loosen the screw, but do not fully remove.

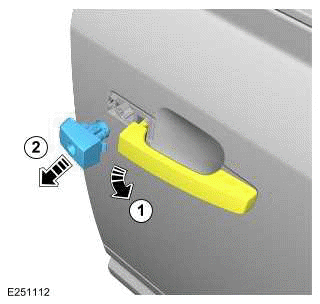

2.
.png)
- Pull the driver door exterior handle.
- Remove the emergency key barrel.

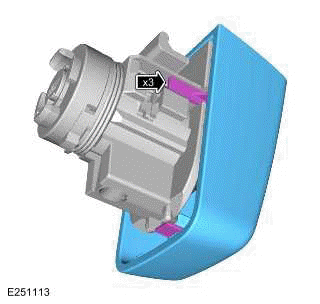

3.
NOTE: Do not disassemble further if the component is removed for access only.
.png)
- Release the 3 clips.
- Remove the emergency key barrel cover.
INSTALLATION
1. Install the front emergency key barrel cover.
2.
- Pull the driver door exterior handle.
- Install the emergency key barrel.
3.
- Tighten the screw.
- Install the access plug.
- Close the driver door.
