Land Rover Defender: Seat Smoothing
GENERAL PROCEDURES
CHECK
WARNINGS:
- Make sure that the steamer is in the OFF position before connecting
or disconnecting from the electrical
outlet.
- Do not use another high wattage device on the same electrical
circuit.
- If the use of an extension cord is absolutely necessary, the cord
must be rated at a minimum of 10 amps.
- To avoid the risk of electrical shock, check the condition of the
power cord and the steamer before use.
- Make sure that the steamer is disconnected from the electrical outlet
before filling or emptying the water
reservoir.
- The steamer must only be used and placed on its stand on a stable
surface.
- To prevent injury such as burns, take care whilst using the steamer.
Avoid coming into contact with the hot
surface of the steamer and do not direct steam toward any persons.
- The steamer must ALWAYS be switched off when not in use or left
unattended.
- Do not allow the power cord to come into contact with the hot surface
of the steamer.
CAUTIONS:
- Protect the surrounding paintwork to avoid damage.
- Protect the paintwork during this operation.
- Do not use any additives in the steamer. Damage to the steamer or the
seat cover can result if used.
NOTE:
Some variation in the illustrations may occur, but the essential information is
always correct.
1.
NOTE:
The seat smoothing process should be used to improve all natural leather
characteristics before
the seat cover is replaced. Use the below examples and the seat cover inspection
procedure as a
guide for when to use the seat smoothing process.

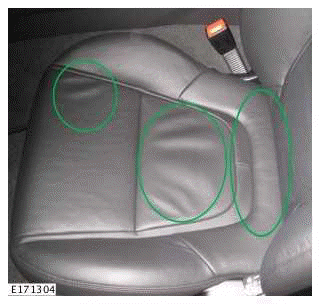

2.
NOTE:
The example in the illustration shows the natural characteristics of leather
that can be improved
using the seat smoothing process.

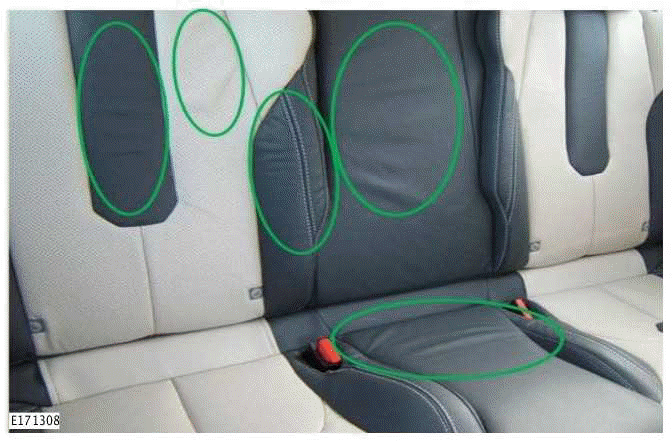

3.
NOTE:
The example in the illustration shows the natural characteristics of leather
that can be improved
using the seat smoothing process.

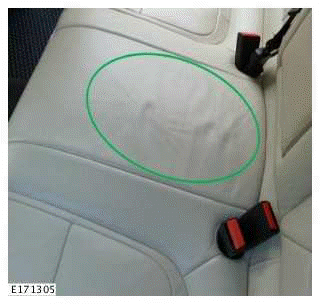

4.
NOTE:
The example in the illustration shows the natural characteristics of leather
that can be improved
using the seat smoothing process.

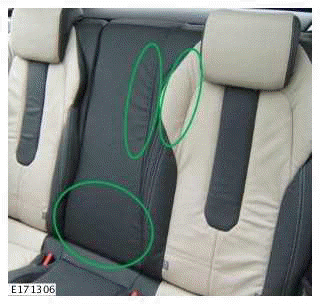

5.
NOTE:
The example in the illustration shows the natural characteristics of leather
that can be improved
using the seat smoothing process.

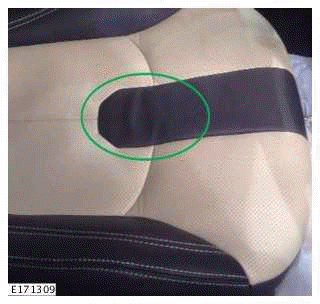

6.
NOTE:
The example in the illustration shows the natural characteristics of leather
that can be improved
using the seat smoothing process.

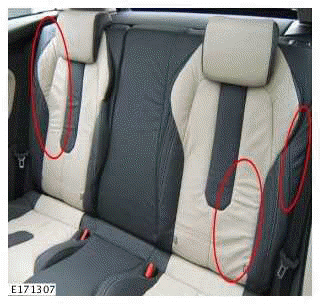

7.
NOTE:
The example in the illustration shows the natural characteristics of leather
that can not be
improved using the seat smoothing process.

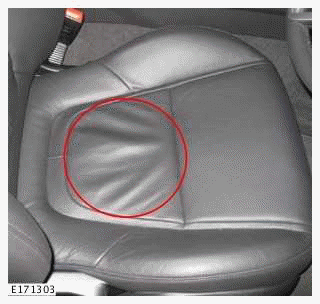

8.
NOTE:
The example in the illustration shows the natural characteristics of leather
that can not be
improved using the seat smoothing process.
9.
CAUTIONS:
- Steam the leather cushions evenly and progressively. Do not use
excessive force.
- Take care not to damage the leather whilst steaming into the corners.
- Do not hold the steamer in one place for longer than 10 seconds, as
this will burn the leather
and damage the covers.
