Land Rover Defender: Roof blind

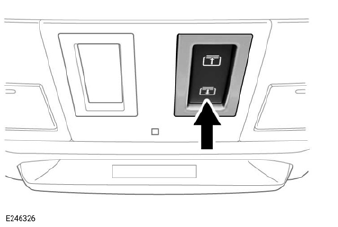

To operate the roof blind: Press the rear of the roof blind switch to the second position and release. The blind fully opens. A further press stops movement of the blind.
Alternatively, press the rear of the roof blind switch to the first position and hold until the blind reaches the desired position. Release the switch.
Press the front of the roof blind switch to the second position and release. The blind fully closes. A further press stops movement of the blind.
Alternatively, press the front of the roof blind switch to the first position and hold until the blind reaches the desired position. Release the switch.
SOLAR ATTENUATING GLASS
The solar attenuating glass windshield filters sunlight passing through a special laminated layer.
Electronic actuating cards, such as toll road payment cards or Radio Frequency (RF) ID tags, can be fixed at the dedicated locations. The locations are on the inside of the windshield. If the cards are located at any other part of a solar attenuating windshield, the electronic scanners may not recognise them.

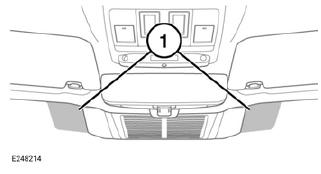

The fixing location is at the top of the windshield, as shown at (1), close to the forward-facing camera cover.
Note: The electronic actuating card should be in the size appropriate location on the driver's side of the windshield.
Note: Transponders, mounted on the front license plate plinth, can be used as an alternative, dependent on the market and availability.
