Land Rover Defender: Parking Brake Release Actuator
REMOVAL AND INSTALLATION
GENERAL EQUIPMENT
.png)
PART(S)
.png)
REMOVAL
1.
- Connect the Jaguar Land Rover (JLR) approved diagnostic equipment and
set the Integrated Power
Brake to the assembly mode.
General Equipment: Jaguar Land Rover approved diagnostic equipment
- Set the Electric Park Brake (EPB) to the maintenance position.
General Equipment: Jaguar Land Rover approved diagnostic equipment
2.
WARNING: Take extra care that the brake pedal is not pressed during the replacement procedure. Failure to follow this instruction might result in personal injury.
NOTE: This step is only required if the Jaguar Land Rover (JLR) diagnostic equipment is not available.
Set the EPB to the maintenance position.
3. Raise and support the vehicle on a suitable 2 post lift.
4. Remove the rear wheels and tires.

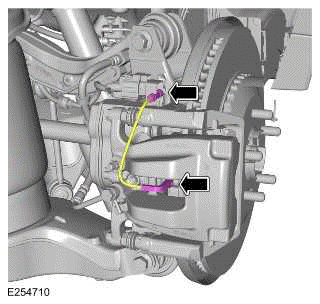

5.
NOTE: Right side only.
.png)
- Disconnect the brake pad wear sensor from the brake pad.
- Release the grommet.

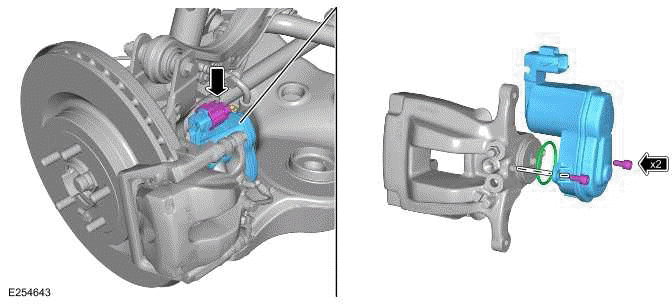

6.
CAUTION: Remove and discard the O-ring seal.
.png)
- Disconnect the electrical connector.
- Remove and discard the 2 bolts.
- Remove the EPB actuator.
- Remove and discard the O-ring seal.
INSTALLATION
1.
CAUTION: Make sure that new bolts and a new o-ring seal is installed.
- Install a new O-ring seal.
Renew Part: Electric park brake actuator fitting kit Quantity: 1.
- Install the EPB actuator to the brake caliper.
- Install and tighten the 2 new bolts.
Torque: 10Nm
- Connect the electrical connector.
2.
NOTE: Right side only.
- Connect the brake pad wear sensor to the brake pad.
- Secure the brake pad wear sensor wiring harness.
3.
NOTE: This step is only required if the JLR diagnostic equipment is not available.
Disable the EPB maintenance mode.
4.
- Connect the JLR approved diagnostic equipment and disable the Integrated
Power Brake assembly
mode.
General Equipment: Jaguar Land Rover approved diagnostic equipment
- Calibrate the EPB using the JLR approved diagnostic equipment.
General Equipment: Jaguar Land Rover approved diagnostic equipment
5. Install the wheel and tire.
Electric Park Brake Switch
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations for left hand drive vehicles, right hand drive vehicles are similar.
1. Disconnect the startup battery ground cable.
2. Remove the instrument panel lower trim.

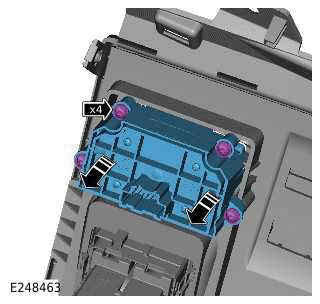

3.
.png)
- Remove the 4 screws.
- Remove the Electric Park Brake (EPB) switch.
INSTALLATION
1.
- Install the Electric Park Brake (EPB) switch.
- Install and tighten the 4 screws.
Torque: 1.5Nm
2. Install the instrument panel lower trim.
3. Connect the startup battery ground cable.
