Land Rover Defender: Headlamp Washer Jet
Land Rover Defender 2020-2024 Service Manual / Body and Paint / Wipers and Washers / Headlamp Washer Jet
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains illustrations for left side components, right side components are similar.
1. Remove the radiator grille.
2.
.png)

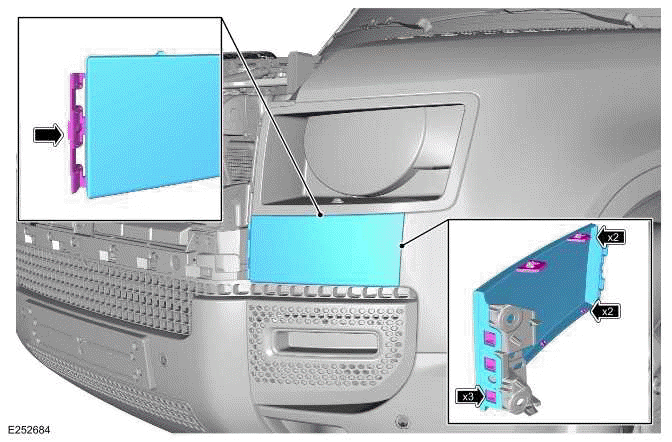

- Use a suitable trim tool to release the access cover 7 clips
- Remove the access cover.
3.
NOTE: Be prepared to collect the escaping fluids.
.png)

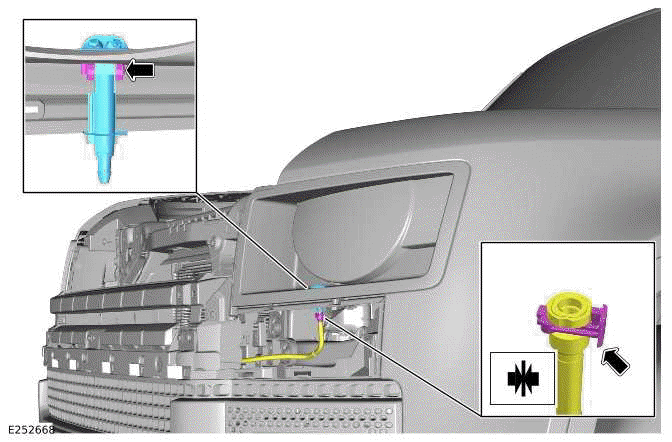

- Disconnect the headlamp washer jet hose from the headlamp washer jet.
- Remove the headlamp washer jet from the headlamp trim panel.
INSTALLATION
1.
- Install the headlamp washer jet into the headlamp trim panel.
- Connect the headlamp washer jet hose to the headlamp washer jet.
2.
CAUTION: Make sure that all the clips are correctly installed.
Install the access cover.
3. Install the radiator grille.
