Land Rover Defender: Front Disc Brake

Land Rover Defender 2020-2026 Service Manual / Chassis / Brake System / Front Disc Brake

SPECIFICATIONS

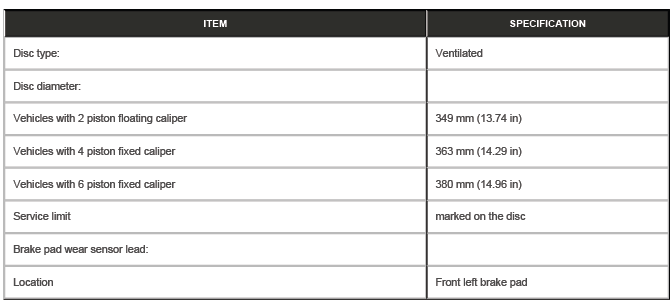

General Specification

Front Disc Brake

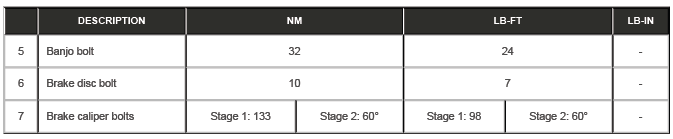

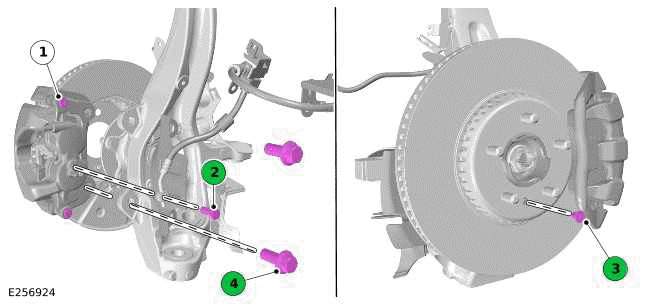

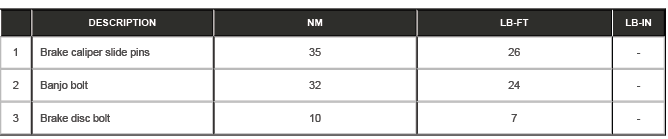

Torque Specification Vehicle with 2 piston floating caliper

COMPONENT TORQUE LOCATION

Front Disc Brake

NOTE: Numbers with green background are a single use component.

Front Disc Brake

Front Disc Brake

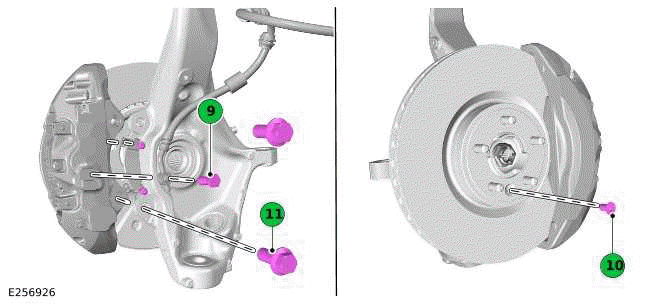

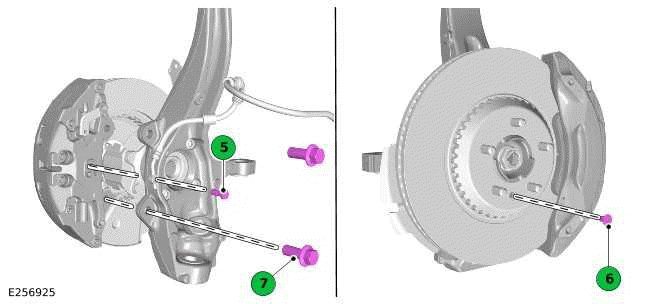

Torque Specification Vehicle with 4 piston fixed caliper

COMPONENT TORQUE LOCATION

Front Disc Brake

NOTE: Numbers with green background are a single use component.

Front Disc Brake

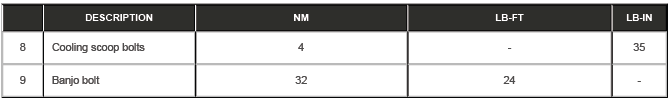

Torque Specification Vehicle with 6 piston fixed caliper

COMPONENT TORQUE LOCATION

Front Disc Brake

NOTE: Numbers with green background are a single use component.

Front Disc Brake

Front Disc Brake

DIAGNOSIS AND TESTING

PRINCIPLES OF OPERATION

For additional diagnosis and testing information, refer to the relevant Diagnosis and Testing section in the workshop manual.
