Land Rover Defender: Exterior Lighting - Control Diagram

Land Rover Defender 2020-2025 Service Manual / Electrical / Lighting / Exterior Lighting / Exterior Lighting - Control Diagram

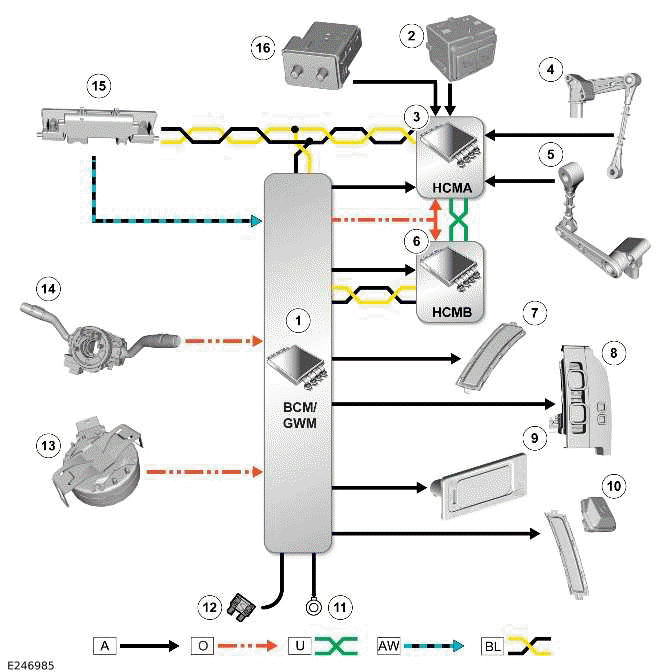

CONTROL DIAGRAM - 1 OF 3

Exterior Lighting

A = HARDWIRED: O = LIN: U = PRIVATE CAN: AW = ETHERNET: BL = HS CAN UN SYSTEM BUS.

  1. BCM/ GWM
  2. Rear height adjust switch
  3. HCM
  4. Front height sensor (quantity 2)
  5. Rear height sensor (quantity 2)
  6. Headlamp Control Module B (HCMB)
  7. Rear side marker lamp/Reflector (quantity 2)
  8. Tail lamp assembly (quantity 2)
  9. Number Plate Lamp (ROW)/License Plate Lamp (NAS) (quantity 2)
  10. Front side marker lamp/Reflector (quantity 2)
  11. Power
  12. Ground
  13. Rain/light sensor
  14. Left steering column switch
  15. IPMA
  16. IPC dimmer

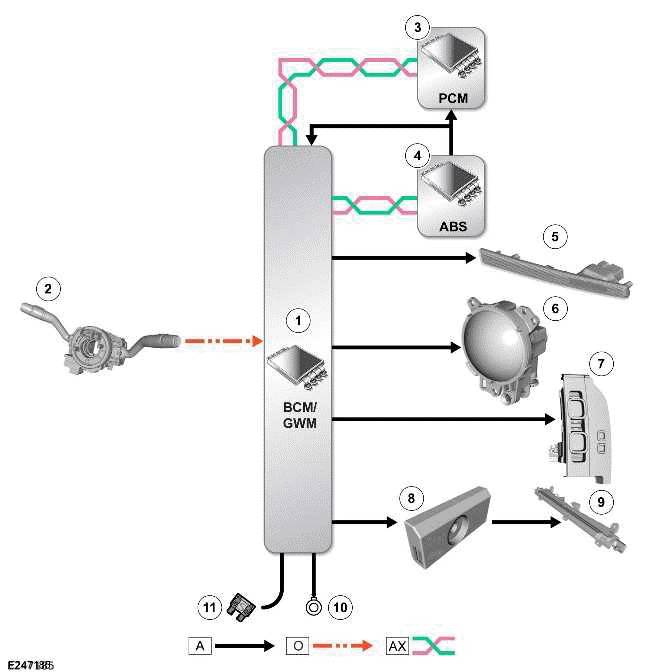

CONTROL DIAGRAM - 2 OF 3

Exterior Lighting

A = HARDWIRED: O = LIN: AX = FLEXRAY.

  1. BCM/ GWM
  2. Left steering column switch
  3. PCM
  4. Anti-Lock Brake System Control Module (ABS)
  5. Rear fog lamp (quantity 2)
  6. Front fog lamp (quantity 2)
  7. Tail lamp assembly (quantity 2)
  8. HMSL filter
  9. HMSL
  10. Ground
  11. Power

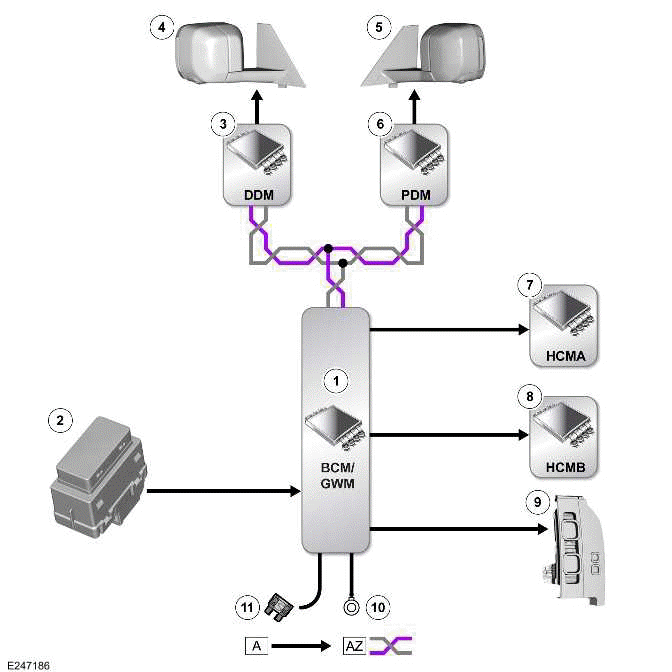

CONTROL DIAGRAM - 3 OF 3

Exterior Lighting

A = HARDWIRED: AZ = HS CAN BODY SYSTEM BUS.

  1. BCM/ GWM
  2. Hazard warning lamp switch
  3. DDM
  4. Side repeater - Driver side
  5. Side repeater - Passenger side
  6. PDM
  7. HCM
  8. HCMB
  9. Tail lamp assembly (quantity 2)
  10. Ground
  11. Power
