CONTROL DIAGRAM

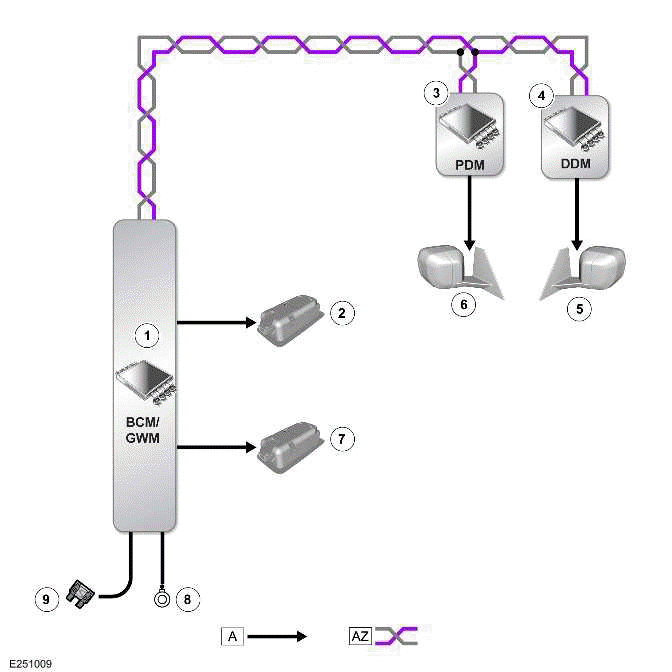

CONTROL DIAGRAM - 1 OF 6 - INTERIOR COURTESY LIGHTING

Interior Lighting

A = HARDWIRED: AZ = HS CAN BODY SYSTEMS BUS.

  1. BCM/ GWM
  2. Front overhead console - Front interior lamp
  3. PDM
  4. DDM
  5. Approach lamp - Driver door mirror
  6. Approach lamp - Passenger door mirror
  7. Footwell lamp (quantity 2)
  8. Vanity mirror LEDs (quantity 2)
  9. Illuminated front treadplate (quantity 2)
  10. Loadspace interior lamp (quantity 2)
  11. Interior lamp rear (quantity 2)
  12. Glovebox lamp
  13. Glovebox switch
  14. Ground
  15. Power supply

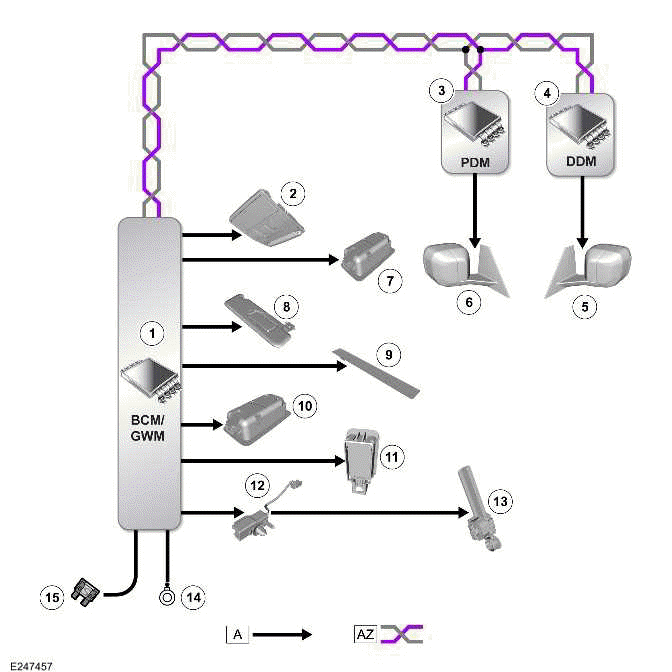

CONTROL DIAGRAM - 2 OF 6 - AMBIENT LIGHTING - 3 DOORS VEHICLE

Interior Lighting

A = HARDWIRED: O = LOCAL INTERCONNECT NETWORK (LIN): AZ = HS CAN BODY SYSTEMS BUS.

  1. BCM/ GWM
  2. Footwell lamp (quantity 2)
  3. PDM
  4. DDM
  5. Driver door ambience lighting LED
  6. Driver door handle ambience lighting LED
  7. Passenger door handle ambience lighting LED
  8. Passenger door pocket ambience lighting LED
  9. Rear quarter pocket ambience lighting LED
  10. Instrument panel illumination - Long
  11. Instrument panel illumination - Short (quantity 2)
  12. Floor console ambience lighting
  13. Ground
  14. Power supply

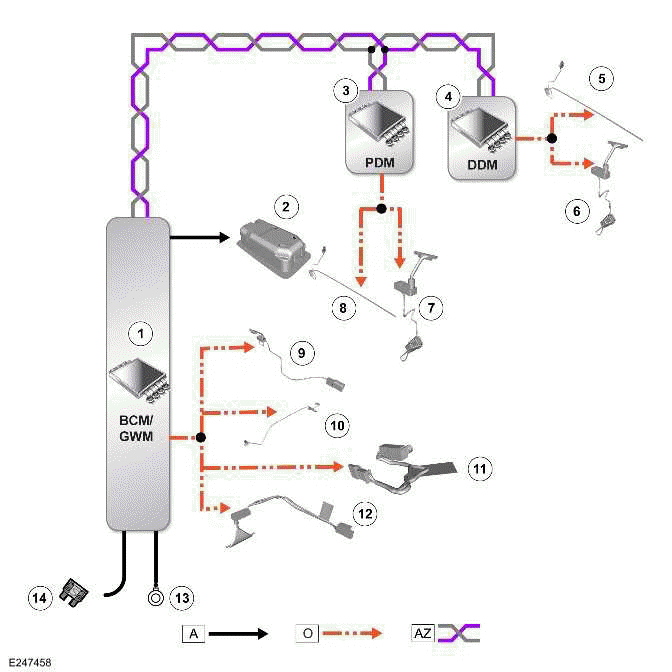

CONTROL DIAGRAM - 3 OF 6 - AMBIENT LIGHTING - 5 DOORS VEHICLE

Interior Lighting

A = HARDWIRED: O = LIN: AZ = HS CAN BODY SYSTEMS BUS.

  1. BCM/ GWM
  2. DRDM
  3. PDM
  4. DDM
  5. Driver door pocket ambience lighting LED
  6. Driver door handle ambience lighting LED
  7. Passenger door handle ambience lighting LED
  8. Passenger door pocket ambience lighting LED
  9. Footwell lamp (quantity 2)
  10. Instrument panel illumination - Long
  11. Instrument panel illumination - Short (quantity 2)
  12. Floor console ambience lighting
  13. Ground
  14. Power supply
  15. Rear door handle ambience lighting LED - Driver side
  16. Rear door ambience lighting LED - Driver side
  17. Rear door handle ambience lighting LED - Passenger side
  18. Rear door ambience lighting LED - Passenger side
  19. PRDM

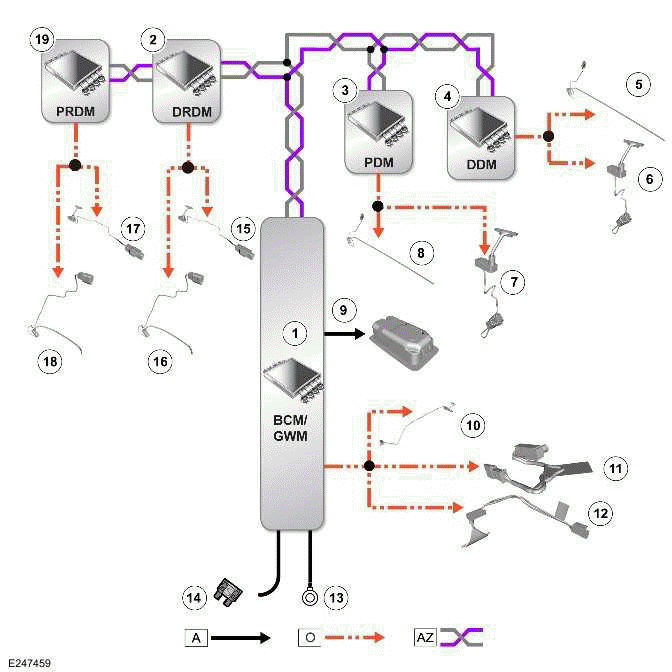

CONTROL DIAGRAM - 4 OF 6 - ILLUMINATED ENTRY - 5 DOORS VEHICLE

Interior Lighting

A = HARDWIRED: AZ = HS CAN BODY SYSTEMS BUS.

  1. BCM/ GWM
  2. Puddle lamp - Front left
  3. PDM
  4. DDM
  5. Approach lamp - Driver door mirror
  6. Approach lamp - Passenger door mirror
  7. Puddle lamp - Front right
  8. Puddle lamp - Rear left
  9. Puddle lamp - Rear right
  10. Ground
  11. Power supply

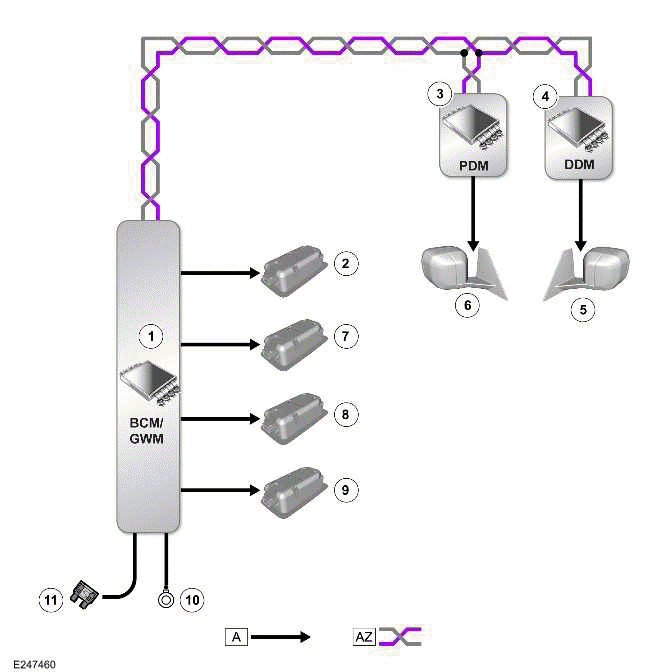

CONTROL DIAGRAM - 5 OF 6 - ILLUMINATED ENTRY - 3 DOORS VEHICLE

Interior Lighting

A = HARDWIRED: AZ = HS CAN BODY SYSTEMS BUS.

  1. BCM/ GWM
  2. Puddle lamp - Left
  3. PDM
  4. DDM
  5. Approach lamp - Driver door mirror
  6. Approach lamp - Passenger door mirror
  7. Puddle lamp - Right
  8. Ground
  9. Power supply

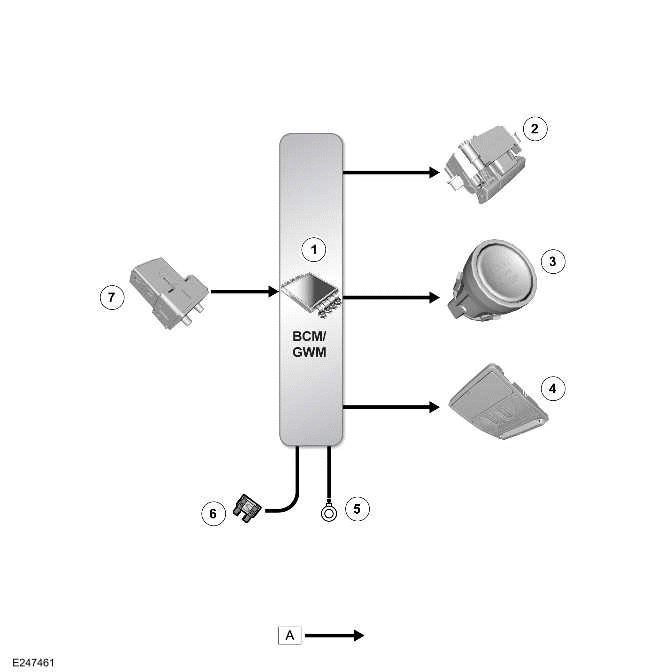

CONTROL DIAGRAM - 6 OF 6 - INSTRUMENT PANEL SWITCH ILLUMINATION

Interior Lighting

A = HARDWIRED.

  1. BCM/ GWM
  2. Electric Park Brake (EPB)
  3. Auto stop/start switch
  4. Front overhead console - Front interior lamp
  5. Ground
  6. Power supply
  7. Auxiliary lighting switch
