Land Rover Defender: Click & Hang Coat Hanger

CLICK & HANG COAT HANGER - PART NUMBER: VPLRS0390

REMOVAL AND INSTALLATION

WARNINGS:

CAUTIONS:

NOTES:

Click & Hang Coat Hanger

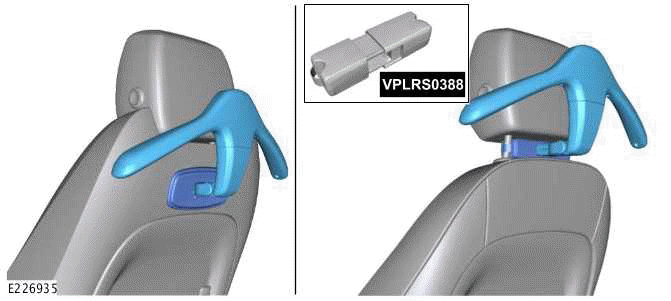

INSTALLATION

1.

Click & Hang Coat Hanger

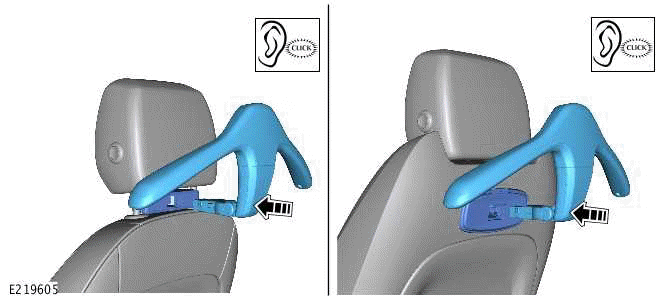

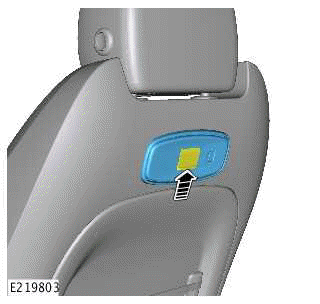

If your vehicle seats are fitted with an integrated backrest base unit, raise and hold open the flap while installing the coat hanger.

2.

NOTE: Listen for an audible click to confirm that the click & hang coat hanger is securely fitted to the base.

Click & Hang Coat Hanger

Push the click & hang coat hanger fully into position.

REMOVAL

1.

Click & Hang Coat Hanger

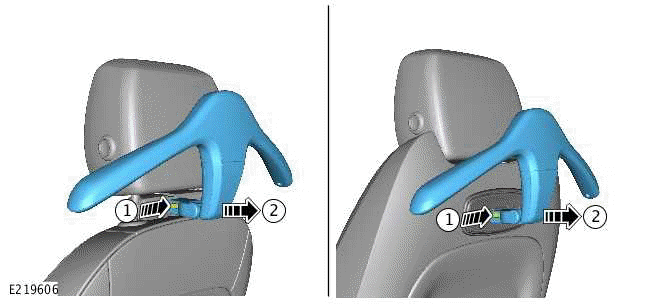

Remove the click & hang coat hanger.

  1. Depress the buttons.
  2. Pull out the coat hanger.

2.

NOTE: The click & hang coat hanger can be separated from the mounting bracket

Click & Hang Coat Hanger

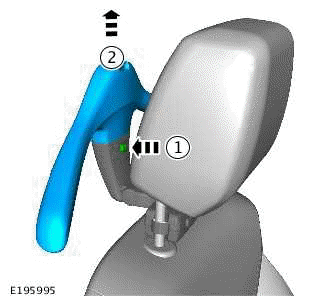

Separate the coat hanger from the mounting bracket.

  1. Depress the button.
  2. Remove the coat hanger.

3.

Click & Hang Coat Hanger

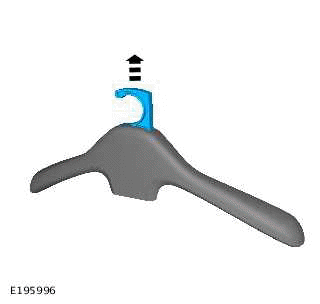

Lift the hook.
